Optimized Amber Screen

Stunning Details with Fast Speed

HeyGears Resin 3D Printer Internal Optical Components Dyed Polarizer Film and High Precision Optical Film

High Contrast Ratio of 566:1

The Amber Screen features a custom composite design with dyed polarizer and optical films, boosting the contrast ratio to 566:1—nearly a 60% increase over the previous generation.

HeyGears Resin 3D printed detail comparison, RS Turbo high-contrast screen vs low-contrast screen printers

Precise Prints with Sharper Details

The dyed polarizer film layer utilizes dye macromolecules, allowing for better control of light transmittance. This reduces overexposure or underexposure, ensuring sharp details for 3D prints.

HeyGears RS Turbo black part 3D printed with PAP10 resin, smooth defect-free surface from amber screen optical film technology

Smooth & Defect-Free Surfaces

The Amber Screen features an optical film layer engineered to transmit light at 90° optimal angles, reducing stray light reaching the curing layer and ensuring residue-free surface smoothness.

HeyGears RS Turbo resin 3D printer molecular structure showing UV-resistant dye macromolecules for longer screen lifespan

Over 1 Million Layers 3D Printing Capability

The dyed polarizer film employs dye macromolecules with excellent UV resistance and heat stability. This minimizes degradation, leading to reduced contrast decay and improved light projection reliability, ultimately extending the screen's lifespan.

*Data sourced from HeyGears Lab. Molecular structure for illustration purposes only.

HeyGears RS Turbo resin 3D printer LCD light intensity heatmap with 60-zone calibration for precise 3D printing

LCD Screen Light Intensity Visualization

To achieve printing high accuracy and reliability, we partition the screen into 60 zones and calibrate it with a full-screen tool, ensuring light intensity variation remains within ±3%* for a printing tolerance of ≤0.05 mm.

Charger la vidéo: <p>The RS Turbo automatically calibrates the screen using<strong> NFC </strong>data, keeping light intensity differences within <strong>5%</strong>* and reducing variations in light intensity to ensure printing precision after screen replacement.</p><p>*Data sourced from HeyGears Lab</p>

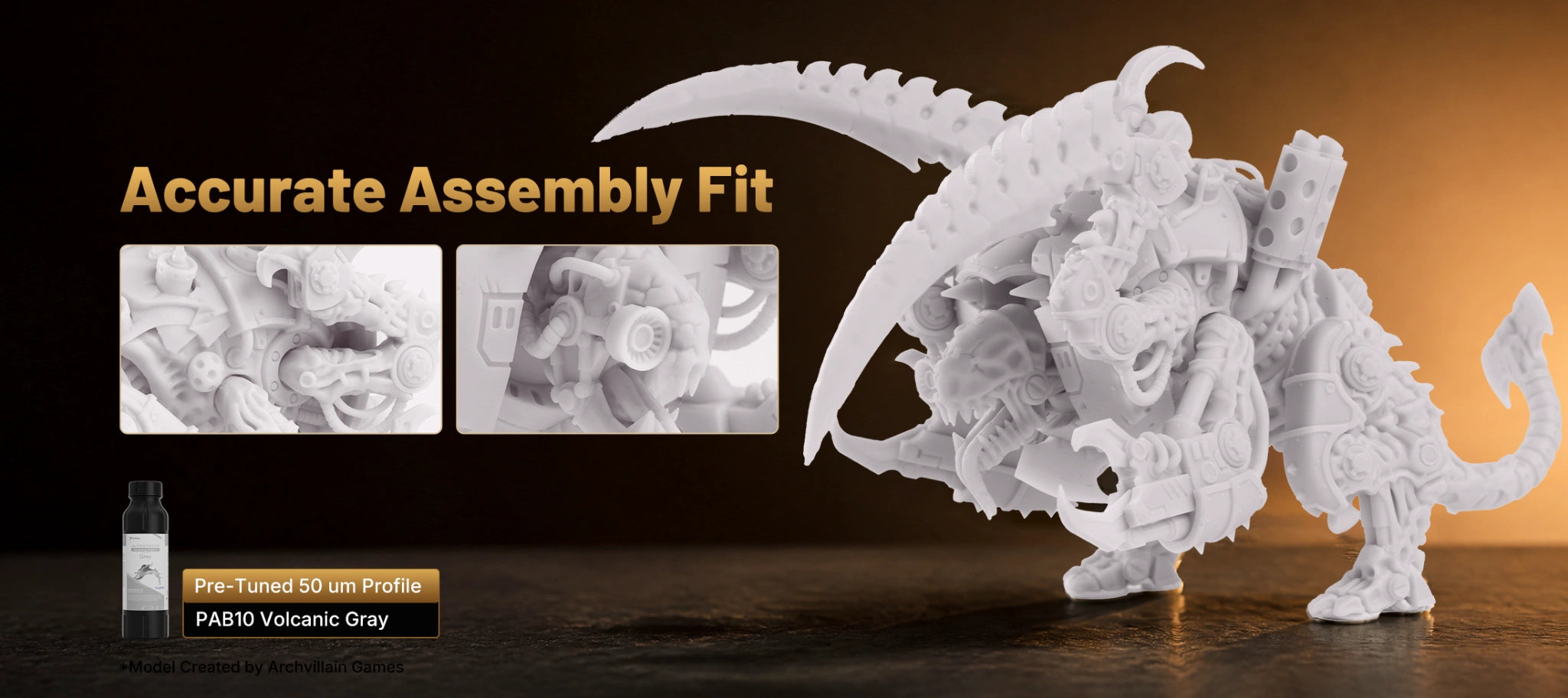

Printed Results Assembly Comparison

The RS Turbo automatically calibrates the screen using NFC data, keeping light intensity differences within 5%* and reducing variations in light intensity to ensure printing precision after screen replacement.

*Data sourced from HeyGears Lab

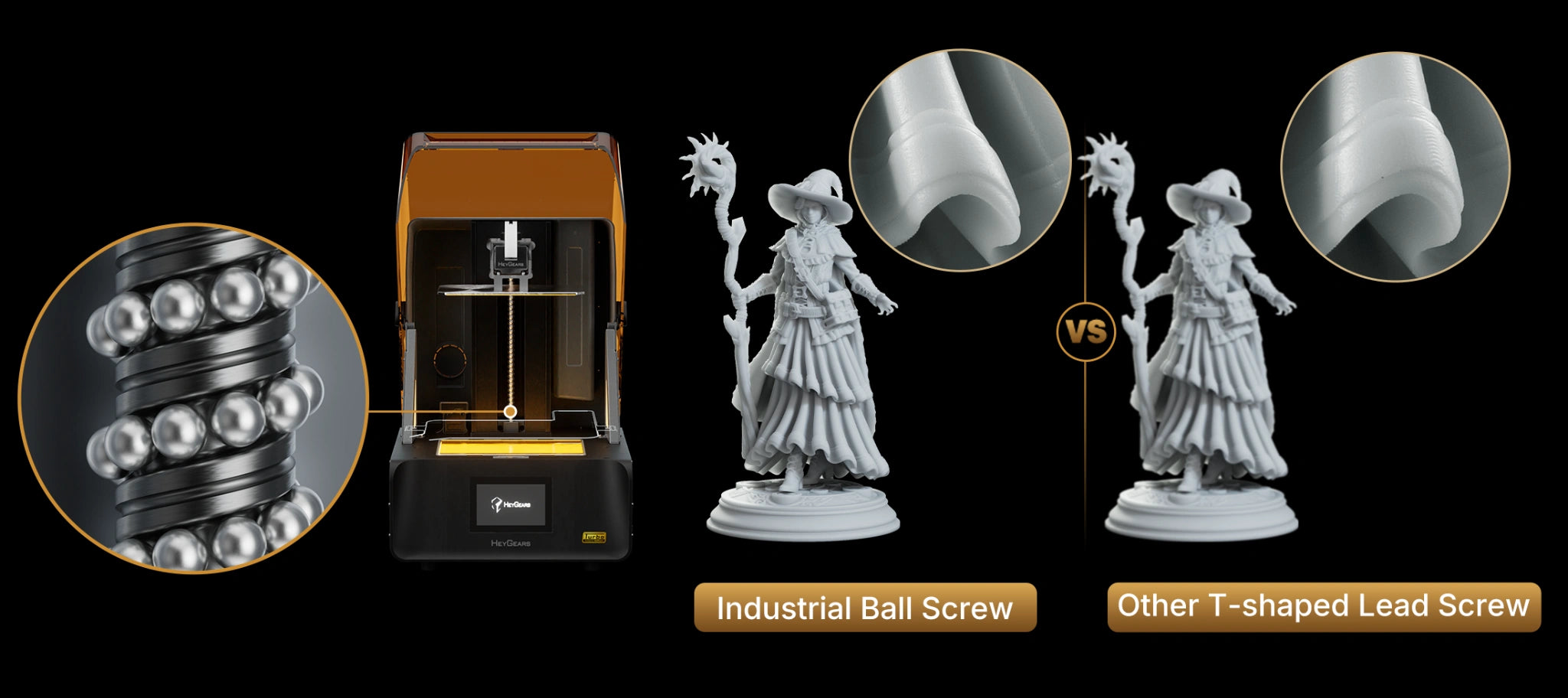

Reliable C5 grade Z-axis Module

High repeat positioning accuracy ensures layer positioning errors are no more than 2 μm*. Tested with a 50 kg load across ten thousand runs.

Adaptive Z-axis Compensation

Charger la vidéo: <p>The adaptive process packages allows the RS Turbo printer to adjust the Z-axis compensation adaptively for each resin, to support up to <strong>180 combinations </strong>of different angles, hole sizes, and edge types.</p>

Adaptive Process Packages

The adaptive process packages allows the RS Turbo printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types.

HeyGears RS Turbo resin 3D printed vs other 3D printers cube comparison

Z-axis Compensation Comparison

This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.

HeyGears RS Turbo high-rigidity frame with vibration-resistant structure for stable LCD resin prints at 4.5s/layer

Built for High Speed 4.5 s/layer Average Printing Speed*

*Data sourced from HeyGears Lab. With high-speed water-washable resin PAWW20, the average printing speed for lattice models reaches 4.5s/layer.

**Printer frame flex within ±2 μm.

***Cools screen temperature by up to 10℃ during printing.

Dynamic Motion Algorithm 3.0, 33% Increase in Print Speed*

*Data sourced from HeyGears Lab, utilizing PAWW10 water-washable resin, compared to conventional motion control 3D printing. The exact speed increase may vary based on model.

Charger la vidéo: <p>Utilizing aseven-segment motion control logic per layer, the RS Turbo reads real-time force sensor data at <strong>80 times</strong> per second, allowing it to adjust motion parameters efficiently, reducing redundant time and preventing printing failures.</p>

Single-Layer Dynamic Motion Control

Utilizing aseven-segment motion control logic per layer, the RS Turbo reads real-time force sensor data at 80 times per second, allowing it to adjust motion parameters efficiently, reducing redundant time and preventing printing failures.

Charger la vidéo: <p>This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.</p>

Comprehensive Dynamic Motion Control

This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.

Resin 3D Printing Speed Comparison HeyGears RS Turbo vs Other 3D Printers with Model Results

Printing Results Comparison

Charger la vidéo: <p>One-click slicing without manual adjustment.</p>

Automatic Pre-processing

Complete Pre-processing in Just One Minute

One-click slicing without manual adjustment.

Charger la vidéo: <p>Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.</p>

Automatic Pre-processing

Automatic Repair Prevents Failures

Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.

Charger la vidéo: <p>Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.</p>

Intelligent Auto-Supports

Automatic Pre-processing

Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.

Charger la vidéo: <p>Force sensors with a sensitivity of <strong>0.1 N</strong> can detect resin residue as small as <strong>0.2 mm </strong>and can auto-stop upon detection or print failure.</p>

Force Value Monitoring System

Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

Charger la vidéo: <p>A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm* for automatic leveling.</p>

Automated Printing Assistance

Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm* for automatic leveling.

Charger la vidéo: <p>The optional RS Turbo heated resin tank* uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*, auto heating maintains this temperature throughout the printing process for optimal results.</p><p><em>*Requires a separate purchase of the RS Heated & Pulsing Release Resin Tank*Data sourced from HeyGears Lab</em></p>

Automated Printing Assistance

Automatic Resin Heating

The optional RS Turbo heated resin tank* uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*, auto heating maintains this temperature throughout the printing process for optimal results.

*Requires a separate purchase of the RS Heated & Pulsing Release Resin Tank*Data sourced from HeyGears Lab

Charger la vidéo: <p>Automatic resin refill before and during printing.</p>

Automated Printing Assistance

Automatic Resin Refill

Automatic resin refill before and during printing.

A Complete Production System

Specifications

3D Printing Technology:

LCD (MSLA)

Screen:

10.3-inch 8K Amber Screen

Optical Wavelength:

405 nm

Z-axis Module:

C5 Grade Accuracy

Build Volume:

222*122*228 mm

XY Native Pixel:

29.7 μm

Accuracy:

±15 μm

Layer Thickness:

30-100 μm

Weight:

20 kg

Rated Power:

180 W

Voltage:

100-240 V~50/60 Hz

Size:

380*360*584 mm

Connectivity:

USB/WIFI

Language:

English, Simplified Chinese, Japanese

Compatible Resin

PARP10、PAS10、PAWW10、PAP10、PAWR10、PAF10、PAWW20

Included in the Box

  • rs 3d printer

    Printer

  • Power Cord icon

    Power Cord

  • Part Removal Tool Icon

    Part Removal Tool

  • Resin Tank Icon

    Resin Tank

  • Build Platform for resin 3d printer Icon

    Build Platform

  • Allen Wrench Icon

    Allen Wrench

  • Scraper icon

    Scraper

Customer Reviews

Based on 43 reviews
88%
(38)
12%
(5)
0%
(0)
0%
(0)
0%
(0)
A
Anthony W. Hodgson
I've been extremely pleased with the results and reliability of the printer

I've been extremely pleased with the results and reliability of the printer. After having 5 or 6 other resin prints of various brands this is the only one that consistently performs without the hours of calibrations and tweaking of settings to dial. There are some things I would like such as a way to hang the build plate to let the resin drain back into the vat. Even a slight concave shape to the top would prevent a lot of the resin from pooling on top of the build plate after it's finished. Not a showstopper but I have to wipe up a lot of resin drips.

D
Diana Löffler
Amazing printer for comic figures

Amazing printer. I have no fails, and very very little printing artifacts to repair.

B
Brandon M Basham
I just upgraded to an heygears reflex rs turbo

I just upgraded to an heygears reflex rs turbo. After using it for about two weeks now i cant ever see myself going back to any other brands. Aside from a few errors on my side with drain holes and orientation, it has printed flawlessly every time with amazing details.

M
Maynor Fontanez
Perfect

Perfect prints

G
Giovanni Azzara
Easy to use immediate results.!

Easy to use, immediate results.
Compared to my previous printer there is no set up, no tweaking of the settings, the printer just works!
Of course you need to adjust the supports and the models in the slicer, which is really user friendly.
The mobile app is a bonus for the ease of use and the alerts!
I highly reccomend the printer!

FAQs

Please read our FAQs page to find out more.

How is the Reflex RS Turbo 3D printer different from other resin 3D printers?

The Reflex RS Turbo features an upgraded Amber Screen with a high contrast ratio of 566:1. This high contrast allows for precise exposure control, ensuring every detail is captured clearly. Additionally, it includes a C5-grade Z-axis module with ±2μm motion accuracy and a Dynamic Motion Algorithm 3.0, enabling up to 33% faster print speeds. You'll achieve sharper, more precise prints while enabling fast printing speeds.

Reflex RS Turbo 3D printer benefit of the upgraded amber screen?

The high-contrast amber screen improves the curing efficiency of each layer by controlling light transmission more precisely. It minimizes light bleeding and stray UV exposure, which helps produce models with sharper edges, smoother surfaces, and fewer printing errors. The screen also offers improved UV resistance and thermal stability, resulting in a longer service life and more consistent print quality over time.

What materials are compatible with the Reflex RS Turbo?

The Reflex RS Turbo is optimized for HeyGears’ advanced resin lineup, including PAP10 Precise Detail Resin and PAWW10 water-washable resin. It can also work with a variety of UV-curable resins depending on your specific application, whether you're printing miniatures and figurines, engineering parts, or display-ready prototypes.

Is the HeyGears Reflex RS Turbo suitable for beginner-level users?

While the RS Turbo is designed with professional-grade components, it also features a user-friendly interface and streamlined printing process. It is especially well-suited for intermediate users who are upgrading from entry-level machines and want better speed, stability, and detail accuracy without a steep learning curve.

What types of models can the Reflex RS Turbo print?

This printer excels in printing high-detail and application-specific models, such as:It can adapt to complex geometric shapes and can easily produce miniature models and armor parts.Figure statue table chess, movable models, electronic products, and outdoor equipment.Engineering-grade parts for testing or presentation.Detailed models such as jewelry prototypes, molds and figurines.Various end products and industrial uses, such as parts and housings.

Is it easy to maintain the HeyGears Reflex RS Turbo?

Yes. Thanks to its modular structure and stable mechanical components, the RS Turbo requires minimal maintenance. The robust Z-axis and screen design reduce the need for frequent calibration or part replacements. With regular cleaning and basic care, users can expect consistent, high-quality prints across for long term.
