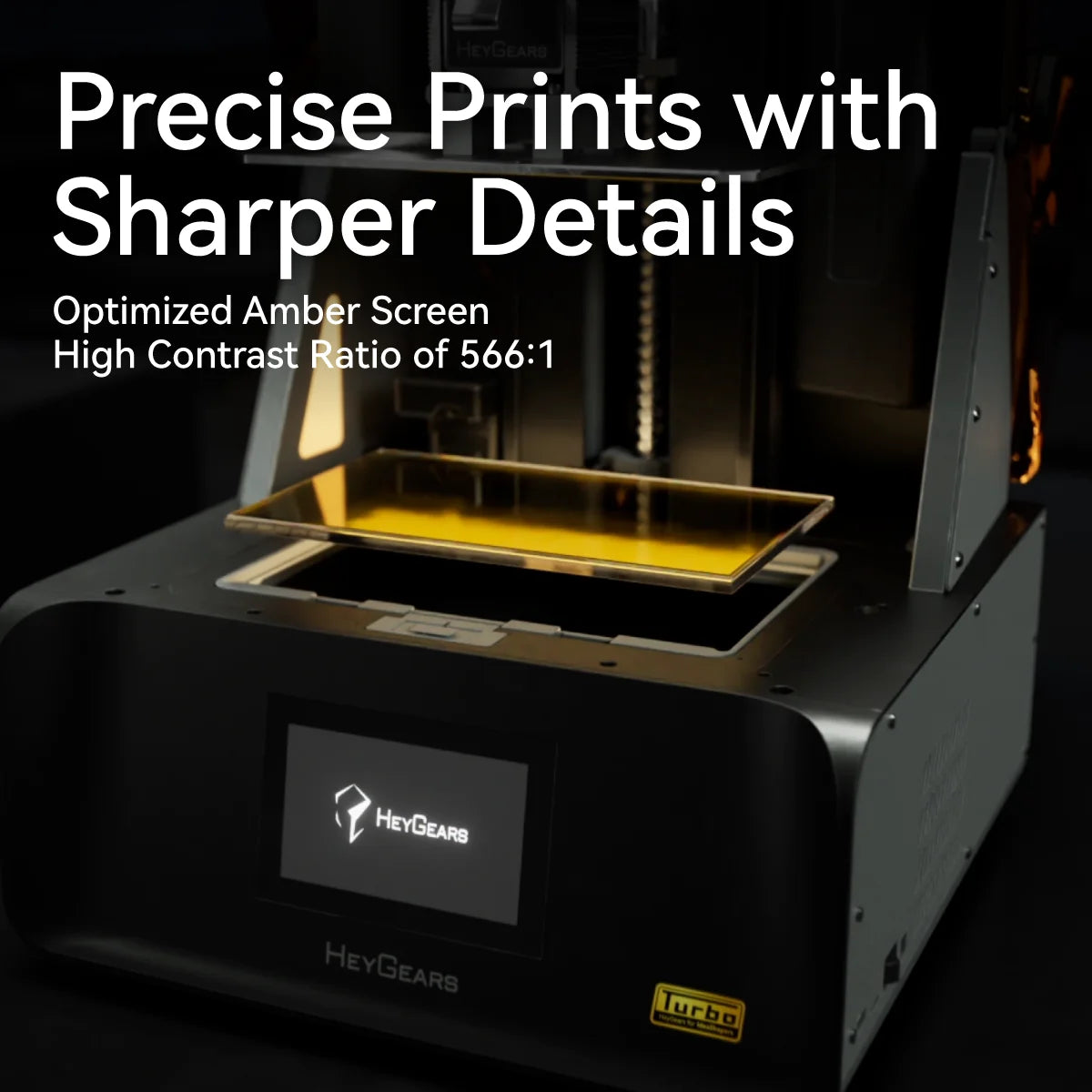

最適化されたアンバー画面。圧倒的なディテールと高速性能

HeyGears Resin 3D Printer Internal Optical Components Dyed Polarizer Film and High Precision Optical Film

566:1の高コントラスト比

Amber Screenは、着色偏光板と光学フィルムを組み合わせた独自のコンポジットデザインを採用し、コントラスト比を566:1に向上。前世代比で約60%増加しています。

HeyGears Resin 3D printed detail comparison, RS Turbo high-contrast screen vs low-contrast screen printers

より鮮明なディテールを再現する高精度プリント

色素を添加した偏光フィルム層には色素高分子が使用されており、光の透過率をより細かく制御できます。これにより、3Dプリントにおける露出過多や露出不足を抑え、鮮明なディテールを実現します。

HeyGears RS Turbo black part 3D printed with PAP10 resin, smooth defect-free surface from amber screen optical film technology

滑らかで欠陥のない表面

アンバースクリーンは、最適な90°の角度で光を透過し、硬化層に到達する迷光を低減して、残留物のない滑らかな表面を実現するよう設計された光学フィルム層を備えています。

HeyGears RS Turbo resin 3D printer molecular structure showing UV-resistant dye macromolecules for longer screen lifespan

寿命2倍

この着色偏光フィルムには、劣化を最小限に抑えコントラスト低下を軽減する、耐UV性と熱安定性を備えた色素高分子が採用されています。これにより、長時間の印刷サイクルでも安定した光の投影を維持し、従来のLCDスクリーンと比較して最大2倍のスクリーン寿命を実現します。

*データはHeyGears Labより提供。分子構造はイメージです。

HeyGears RS Turbo resin 3D printer LCD light intensity heatmap with 60-zone calibration for precise 3D printing

卓越した光の均一性

正確で信頼性の高い3Dプリントを実現するため、LCDスクリーンは60の校正済みゾーンに分割されています。 画面全体の校正により、光強度のばらつきを±3%*以内に抑え、<0.05 mmの造形公差の実現をサポートします。

動画を読み込む&lt;p&gt;RS Turboは&lt;strong&gt; &lt;/strong&gt;&lt;em&gt;&lt;strong&gt;NFC &lt;/strong&gt;&lt;/em&gt;データを使用して画面を自動的にキャリブレーションし、輝度の差を&lt;em&gt;&lt;strong&gt;5%&lt;/strong&gt;&lt;/em&gt;*以内に保ち、&lt;em&gt;&lt;strong&gt;画面交換後も印刷精度を確保するために輝度のばらつきを低減します。&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;&lt;p&gt;*データはHeyGears Labより提供&lt;/p&gt;

印刷結果 組み立て比較

RS Turboは NFC データを使用して画面を自動的にキャリブレーションし、輝度の差を5%*以内に保ち、画面交換後も印刷精度を確保するために輝度のばらつきを低減します。

*データはHeyGears Labより提供

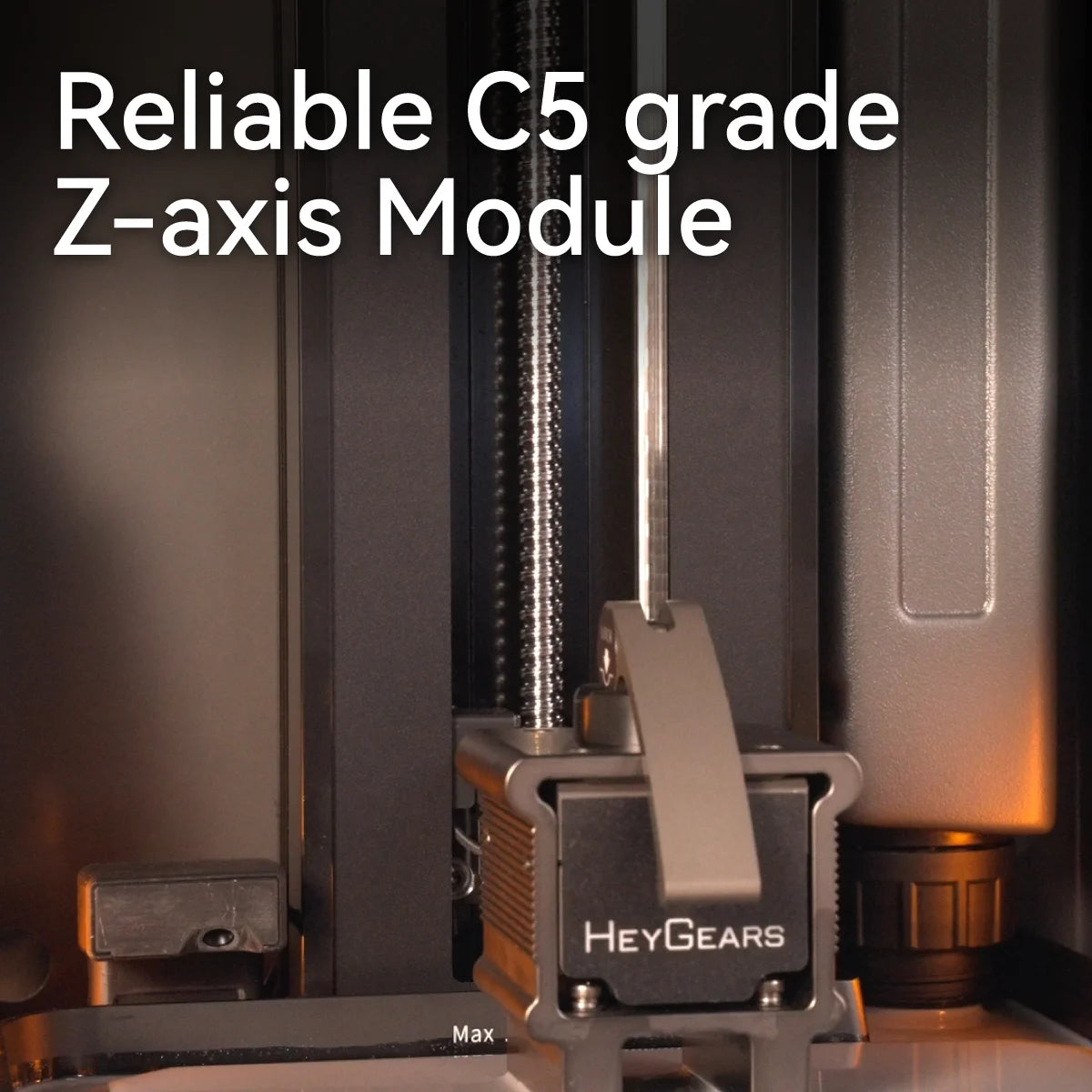

信頼性の高いC5グレードZ軸モジュール

高い繰り返し位置決め精度により、積層位置決め誤差は2μm以下です。50kgの荷重で1万回の動作試験を実施済みです。

動画を読み込む&lt;p&gt;アダプティブプロセスパッケージにより、RS TurboプリンターはレジンごとにZ軸補正を適応的に調整し、異なる角度、穴のサイズ、エッジタイプの最大&lt;em&gt;&lt;strong&gt;180通り&lt;/strong&gt;&lt;/em&gt;&lt;strong&gt;の組み合わせに対応します。&lt;/strong&gt;&lt;/p&gt;

アダプティブ・プロセス・パッケージ

アダプティブプロセスパッケージにより、RS TurboプリンターはレジンごとにZ軸補正を適応的に調整し、異なる角度、穴のサイズ、エッジタイプの最大180通りの組み合わせに対応します。

HeyGears RS Turbo resin 3D printed vs other 3D printers cube comparison

Z軸 補正比較

この手法は、Z軸補正パラメータを単独で使用する場合と比較して、サポート面での変形と樹脂の蓄積を最小限に抑え、後処理時間を短縮します

動画を読み込む&lt;p&gt;使いやすく、開封してすぐに使えるRS Turboは、&lt;em&gt;&lt;strong&gt;直感的なスライサーソフトウェア、迅速なセットアップ、手間いらずの操作性、そして初心者でも驚くほど高品質な3Dプリントを実現します。&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

かんたんにスタート。プロのようにプリント。

素晴らしいプリント をすぐに

使いやすく、開封してすぐに使えるRS Turboは、直感的なスライサーソフトウェア、迅速なセットアップ、手間いらずの操作性、そして初心者でも驚くほど高品質な3Dプリントを実現します。

動画を読み込む&lt;p&gt;&lt;em&gt;&lt;strong&gt;HeyGears製レジン向けプリセットプロファイル&lt;/strong&gt;&lt;/em&gt;は、ミニアチュアーやフィギュアから小道具まで、難易度の高い造形を簡単に行え、シャープなディテール、優れた表面品質、確かな耐久性を実現します。プリセット以外の用途には、&lt;em&gt;&lt;strong&gt;オープンマテリアルモードにより、より幅広いレジンへの対応とカスタムパラメータによる制御が可能になります。&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

かんたんにスタート。プロのようにプリント。

プリチューニング済み30μmプロファイル

HeyGears製レジン向けプリセットプロファイルは、ミニアチュアーやフィギュアから小道具まで、難易度の高い造形を簡単に行え、シャープなディテール、優れた表面品質、確かな耐久性を実現します。プリセット以外の用途には、オープンマテリアルモードにより、より幅広いレジンへの対応とカスタムパラメータによる制御が可能になります。

動画を読み込む&lt;p&gt;手動調整不要のワンクリックスライス。&lt;/p&gt;

かんたんにスタート。プロのようにプリント。

前処理をわずか1分で完了

手動調整不要のワンクリックスライス。

動画を読み込む&lt;p&gt;法線の反転、穴、シェル同士の交差などのモデルの不備を自動的に検出して修復します。&lt;/p&gt;

自動前処理

自動修復 が障害を防止

法線の反転、穴、シェル同士の交差などのモデルの不備を自動的に検出して修復します。

動画を読み込む&lt;p&gt;インテリジェントに構成されたスキャフォールドサポーターにより、&lt;em&gt;&lt;strong&gt;剥離の低減とプリント成功率の向上が実現します。&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

インテリジェント自動サポート

自動前処理

インテリジェントに構成されたスキャフォールドサポーターにより、剥離の低減とプリント成功率の向上が実現します。

動画を読み込む&lt;p&gt;感度&lt;em&gt;&lt;strong&gt;0.1 N&lt;/strong&gt;&lt;/em&gt;&lt;em&gt;の力覚センサーにより、&lt;em&gt;&lt;strong&gt;0.2 mm&lt;/strong&gt;&lt;/em&gt;という微細な樹脂の残留物を検知でき、検知時や印刷失敗時に自動停止します。&lt;/em&gt;&lt;/p&gt;

印刷するたびにセルフチェック

残留物検出

感度0.1 Nの力覚センサーにより、0.2 mmという微細な樹脂の残留物を検知でき、検知時や印刷失敗時に自動停止します。

動画を読み込む&lt;p&gt;自動レベリング用のフローティングスクリーンシステムは、&lt;em&gt;&lt;strong&gt;0.15°の傾きで最大240 µmの隙間を解消&lt;/strong&gt;&lt;/em&gt;*します。&lt;/p&gt;

印刷するたびにセルフチェック

フローティングスクリーン 自動調整

自動レベリング用のフローティングスクリーンシステムは、0.15°の傾きで最大240 µmの隙間を解消*します。

動画を読み込む&lt;p&gt;オプションのRS Turboヒーター付きレジンタンク*は、内蔵ヒーターにより効率よくレジンを加熱します。レジン温度を&lt;em&gt;&lt;strong&gt;50°F(10°C)から20分で最適な73°F(22°C)まで上昇させ*&lt;/strong&gt;&lt;/em&gt;、自動加熱機能が印刷プロセス全体を通してこの温度を維持し、最適な結果を実現します。&lt;/p&gt;&lt;p&gt;&lt;em&gt;*RSヒーター&パルスレリーズレジンタンクを別途購入する必要があります*データはHeyGears Labより提供&lt;/em&gt;&lt;/p&gt;

印刷するたびにセルフチェック

レジンの自動加熱

オプションのRS Turboヒーター付きレジンタンク*は、内蔵ヒーターにより効率よくレジンを加熱します。レジン温度を50°F(10°C)から20分で最適な73°F(22°C)まで上昇させ*、自動加熱機能が印刷プロセス全体を通してこの温度を維持し、最適な結果を実現します。

*RSヒーター&パルスレリーズレジンタンクを別途購入する必要があります*データはHeyGears Labより提供

動画を読み込む&lt;p&gt;&lt;em&gt;&lt;strong&gt;印刷前および印刷中のレジンの自動補充&lt;/strong&gt;&lt;/em&gt;。&lt;/p&gt;

印刷のたびにセルフチェック

Automatic レジン補充

印刷前および印刷中のレジンの自動補充。

動画を読み込む&lt;p&gt;このアルゴリズムは、断面形状、パーツ間隔、数量などの要素を用いて各レイヤーの印刷難易度を評価し、&lt;em&gt;&lt;strong&gt;品質を確保しながら速度を向上させるため、最適化された18種類のモーション制御パラメータから選択します。&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

印刷するたびにセルフチェック

ダイナミックモーションコントロール

このアルゴリズムは、断面形状、パーツ間隔、数量などの要素を用いて各レイヤーの印刷難易度を評価し、品質を確保しながら速度を向上させるため、最適化された18種類のモーション制御パラメータから選択します。

完全な生産システム

仕様

3Dプリント技術:

LCD (MSLA)

スクリーン:

10.3インチ 8K アンバースクリーン

光波長:

405 nm

Z軸モジュール:

C5精度

造形サイズ:

222*122*228 mm

XYネイティブピクセル:

29.7 μm

精度:

±15 μm

積層ピッチ:

30-100 μm

重量:

20 kg

定格出力:

180 W

電圧:

100-240 V~50/60 Hz

サイズ:

380*360*584 mm

接続:

USB/WIFI

言語:

英語、簡体字中国語、日本語

適合樹脂

PARP10、PAS10、PAWW10、PAP10、PAWR10、PAF10、PAWW20

同梱物

  • rs 3d printer

    プリンター

  • Power Cord icon

    電源コード

  • Part Removal Tool Icon

    部品取り外し工具

  • Resin Tank Icon

    樹脂タンク

  • Build Platform for resin 3d printer Icon

    ビルドプラットフォーム

  • Allen Wrench Icon

    六角棒レンチ

  • Scraper icon

    スクレイパー

  • 5 stars: 85 (91%)
  • 4 stars: 8 (9%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
J
J Rowan
I am a total rookie at 3D printing

I am a total rookie at 3D printing. Never done it before. The Reflex RS has been so incredibly easy to use. I am blown away. Within minutes of setting it up (which was a breeze) I was already printing. As a miniature Painter, this will change my life. I am so stoked to have this in my work area because now something that seemed so daunting, is easily handled in minutes.

R
Raymond McKeon
Worth the extra money to save you the extra trouble of other brands!

Been printing for a couple years but was tired of all the problems and issues that come with it taking away from my time at actually painting what I print... so figured it was time to upgrade and maybe even spend a little extra so I dont run into as many issues. Upon my research I found that's exactly what hey gears printers are! I've had it for a little over a week now and man did they not dissapoint! Plug and play!

V
Vas Obeyesekere
Worry free printer. Great for minis!

This is my first printer but I've been following resin printing for several years before choosing which company to invest in. The Heygears Reflex RS has been incredible, absolutely no regrets!

C
Cliff McMann
This is my first resin printer

This is my first resin printer. I’m deep into the learning curve, but have already printed 3 plates of miniatures. The plug and play ecosystem makes those first prints easy and exciting. The fact that HeyGears is opening that system up and responding to their users was what sold me on the system. I’m excited to be able to produce great results in such a short time, while knowing I can dive as deep into the hobby as I want. Now I just need to learn to paint faster.

M
Marc Rush
Moved over from another brand that I had constant problems with

Moved over from another brand that I had constant problems with. The RS Turbo has not only never failed but the quality of the prints is beyond my expectations. Able to get to painting which is why I’m doing the hobby and not constantly messing with settings or even doing loads of clean up.

J
James F Kappers
Although I own many other resin printers

Although I own many other resin printers, this one is on a completely different level. The engineering, precision, and overall performance are far more advanced than any of my previous machines. The print quality is noticeably superior — sharper details, smoother surfaces, and a level of consistency the others simply can’t match.

G
Gene Krawczyk
I bit the bullet and decided to get the heygears product

I bit the bullet and decided to get the heygears product. I have a elgoo saturn3 ultra and a older anycubic. I could never be guaranteed of a successful print and really wanted something like bambu labs where I buy their filament and everything works first time. I have given up trying different resins and settings to get just ok to below average results. You waste a lot of time,gloves,mess and ipa doing this.

First print worked flawlessly as they all seems to. After I had a couple of fails due to bad supports but now I have a rough idea what I am doing it works every time.
The slicer took a bit of getting used to and is based around having folders and completed sliced objects in there own directories. But once you understand it, you then do it as a workflow.

Sending files to the printer is effortless and remote printing works a charm.

You need to print this "HeyGears Reflex RS Drip Caddy MD Remix" from bambu labs as sadly Heygears do not have a way to drain the build plate. There is a few different types. This one is a bit tight and I just filed it to make it a looser fit.

These are the resins I have tried. I doubt I will be using any other brand resins as these work. They deliver to me in about 4 days and I have no headaches. I cant be bothered printing another test object to attempt to get the best print and waste a day of my life on multiple prints.

PAS10 works well is cheap, when I print minis it has some flexibility but small bits still break if dropped.
PAF10 costs more and dropped minis survive. I have just ordered 3 more bottles.
PAP10 I have only printed one item (A control panel holder)and appears good
PAF10 and PAP10 drain really well. If you let them drain for awhile the items are fairly clean requiring a lot less IPA and the supports come of easily.
PAS10 does not drain as good and requires more IPA.

My other 2 printers I will get rid of now as this machine works very well. I cant imagine turning them on again.
I just bought the Cure device as well. Dam expensive but when you see what you get you understand why.

Now the best part "resolution of the screen".
On a computer higher resolution you see a difference. Somehow on the Heygears I get better quality minis by a massive difference compared to my Saturn ultra which has a resolution of 11500 I think.
I am now reprinting a lot of minis as the quality is amazing.
I am now wondering if I should purchase the wash station

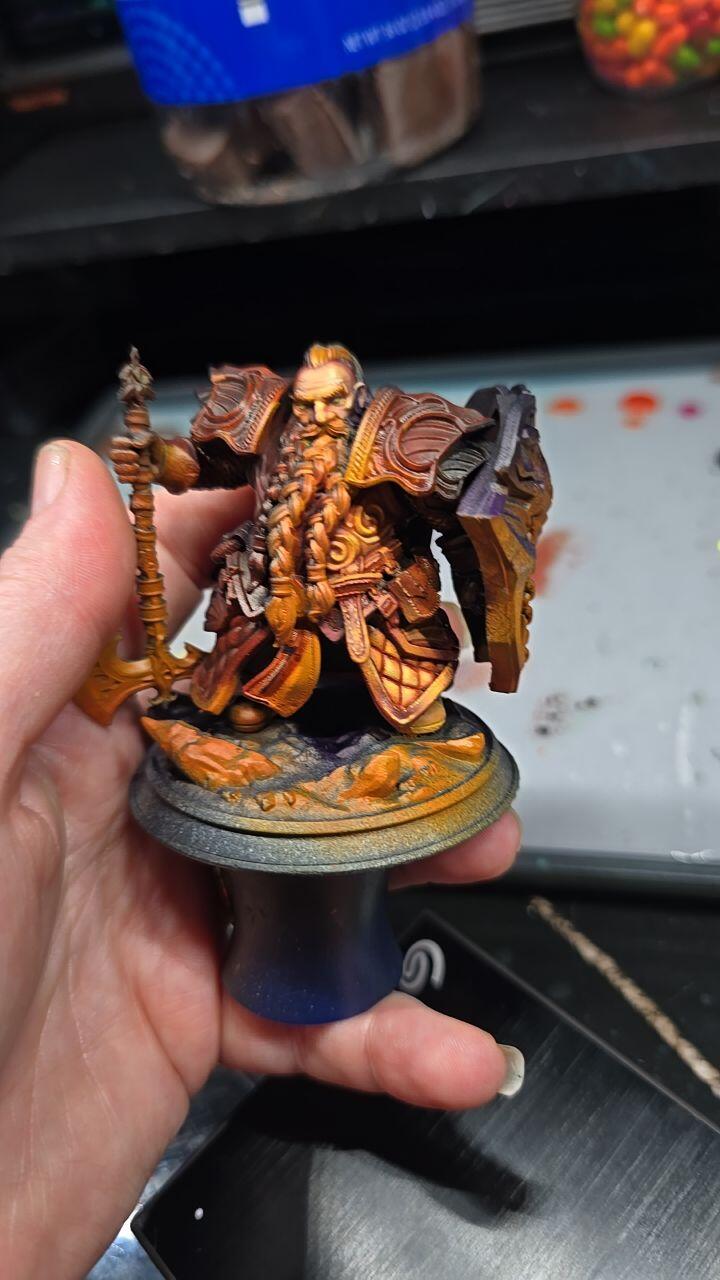

I put a pic of a warhammer model for size comparison. the archer is a model from stormlight note the arrow.
Gene

O
Oliver Gassman
Fantastic results from the first print

Fantastic results from the first print. I've never used a resin printer before so the learning curve is pretty steep, but I got decently printable miniatures from my first print.

G
Gary Lee Morris
I now own 6 RS Turbos and all are excellent.

I now own 6 RS Turbos. They are excellent machines and suit my small 3d printforge perfectly. I look forward to Heyygears releasing a large format version with anticipation. If they can match these in large format they'll be the only printers we use in our small business. The software, workflow and simplicity mean virtually zero downtime and they've been running 24/7 wiith a 99.99% success rate.

I
Israel Melendez
RS Turbo Reflex with Pulse Module

Recently, purchased the RS Turbo Reflex with the heated vat and pulse module. And I have to say I am not disappointed. The ease of use and quality of the prints are amazing. Additionally, I purchased the curing station to help strengthen the prints. I would recommend this to anyone. Beginner and experienced.

P
Panda Casting
This is my first time buying a resin 3D printer and I was anxious about the complexity and

This is my first time buying a resin 3D printer and I was anxious about the complexity and learning curve. I decided to go with the Reflex RS Turbo given the streamlined workflow, speed, and high contrast amber screen. And it was literally "set it and forget it" for all my 32mm scale miniatures!

b
brpry171
I have both the Heygears RS and the RS Turbo

I have both the Heygears RS and the RS Turbo. Well built printers. Almost everything that I print comes out perfect. I like to spend my time finishing my statues and not spend the time messing with settings. I find that it is a very easy printer to use and the results are excellent. You can't beat the price for this machine that is on sale for $699!

O
Ocloro
Incredible printer

Incredible printer. Beautiful perfect prints every time. The quality is mind blowing.

C
Clarke Wardle
The printer is one of the best printers I have ever used

The printer is one of the best printers I have ever used. Speed is fantastic, The Turbo screen really makes the prints faster and I mean considerably faster

C
Chris
#HeyGearsRSTurboPrinter

#HeyGearsRSTurbo
Printer is amazing had it for about 2 months and so far no failed prints and very high detail. I highly recommend the rs turbo

A
Aldo
After pfaffing around with other printer brands

After pfaffing around with other printer brands and constantly having failures I decided to splurge on this printer. It was the absolute best decision I made in this hobby. Every print is flawless and I’ve literally had no fails since I got it in June 2025. This is the best printer right now hands down. #HeyGearsRSTurbo

よくある質問

詳細については、FAQページをご覧ください。

Reflex RS Turboは、他のレジン3Dプリンターとどのように違いますか?

HeyGears Reflex RS Turboは、高速レジン印刷と、精細で信頼性の高い結果を実現するために設計された高精度コンポーネントを組み合わせています。コントラスト比566:1のアップグレードされたAmber Screen、±2μmの移動精度を持つC5グレードのZ軸モジュール、そして最大33%高速な印刷を実現するDynamic Motion Algorithm 3.0を搭載しています。これらの技術により、高速印刷でもシャープなディテール、精緻なエッジ、一貫したプリント品質を実現します。

Reflex RS Turboのアップグレードされたアンバー スクリーンには、どのようなメリットがありますか?

アップグレードされたアンバースクリーンは、566:1という高いコントラスト比を実現し、露光時のより精密な光制御を可能にします。不要な光漏れや迷光によるUV露光を低減することで、よりシャープなエッジ、精細なディテール、滑らかな表面の形成に寄与します。また、耐UV性と熱安定性も向上しており、長期にわたって安定した印刷性能を発揮します。

Reflex RS Turboでサードパーティ製のレジンを使用できますか?

はい。Reflex RS Turboは、Open Material Modeを使用して、互換性のあるサードパーティ製UV硬化性レジンを使用できます。熟練ユーザー向けに設計されたOpen Material Modeでは、印刷設定を調整でき、さまざまなレジンや用途に合わせて印刷パラメータをより自由に微調整・カスタマイズできます。最適な印刷パフォーマンスを実現するため、HeyGearsでは、PAS10、PAF10、PAP10、PARP10、PAWR10、PAB10、PAWW20を含む、互換性のあるRS Turboレジンも提供しています。これらのレジンは、ミニチュア、フィギュア、プロトタイプ、機能部品、詳細モデルなどの用途向けに設計されています。

Reflex RS Turboはミニチュア制作に適した3Dプリンターですか?

はい。Reflex RS Turboは高精細なレジンプリント向けに設計されており、特にミニチュアの造形に適しています。高コントラストのアンバースクリーン、高精度なZ軸駆動、最適化されたプリントワークフローにより、微細な質感や顔の造作、シャープなエッジなどの小さなディテールを再現できます。

Reflex RS Turboはどのような用途に最適ですか?

Reflex RS Turboは、ミニチュア、アクションフィギュア、フィギュア、コレクタブル、テーブルトップモデル、ジュエリープロトタイプ、金型、エンジニアリングプロトタイプ、機能部品、製品ハウジングなど、幅広い用途における高精細な樹脂プリント向けに設計されています。高解像度プリント機能により、シャープなエッジ、微細なテクスチャ、小さなディテール、複雑な形状における均一な再現性を実現し、精度と信頼性の高い結果の両方が求められるモデルやプロトタイプの製作に特に適しています。

Reflex RS Turboはメンテナンスしやすいですか?

Reflex RS Turboは、効率的なメンテナンスを実現するよう設計されています。モジュール式構造、堅牢なZ軸システム、耐久性に優れたAmber Screenにより、頻繁なキャリブレーションの必要性を軽減します。安定したプリント品質と長期的なパフォーマンスを維持するため、定期的な清掃、レジンの取り扱い、および日常点検は引き続き推奨されます。

Reflex RS Turboで、ディテールの細かいアクションフィギュアやコレクタブルアイテムを印刷できますか?

はい。Reflex RS Turboは、精巧なアクションフィギュア、キャラクターモデル、コレクターズアイテム、ディスプレイ用作品に適しています。高解像度のレジンプリンティングにより、複雑な形状、顔の造作、衣装の質感などの細部を再現すると同時に、複雑なモデル全体で均一な印刷品質を維持できます。

Reflex RS Turboはどのような人におすすめですか?

Reflex RS Turboは、より速く、精細で信頼性の高い結果を得たいミニチュア製作者、テーブルトップゲーマー、コレクター、ホビーユーザー、デザイナー、クリエイターに最適です。また、エントリーレベルのレジン3Dプリンターからステップアップしたいユーザーにとっても、有力なアップグレードの選択肢となります。

Reflex RS Turboの最高速度はどのくらいですか?

Reflex RS Turboは、Dynamic Motion Algorithm 3.0を採用し、前世代よりも最大33%高速な印刷を実現します。その高速ワークフローは、全体の印刷時間を短縮しながら、精細なディテールと安定した印刷品質を維持するように設計されています。

Reflex RS Turboは家庭用3Dプリンターとしておすすめですか?

Reflex RS Turboは、高精細なレジンプリントを必要とするホビーユーザー、ミニチュア製作者、コレクター、クリエイター向けの高性能な家庭用3Dプリンターとしてご使用いただけます。効率化されたワークフローにより、プロレベルの性能を維持しながら、レジンプリントをより簡単に管理できます。

Reflex RS Turboにはどのような素材が対応していますか?

Reflex RS Turboは、HeyGearsの高度なレジンラインナップ、例えばPAP10 Precise Detail ResinやPAWW10水洗いレジンなどに最適化されています。また、用途に応じて、ミニアチュアーやフィギュア、機能部品、展示用プロトタイプなど、さまざまなUV硬化レジンにも対応しています。

HeyGears Reflex RS Turboは初心者レベルのユーザーに適していますか?

RS Turboはプロ仕様のコンポーネントで設計されている一方で、使いやすいインターフェースと合理化された印刷プロセスも備えています。特に、エントリーレベルの機種からアップグレードし、急な学習コストを伴わずに、より優れた速度、安定性、ディテール精度を求める中級ユーザーに適しています。

Reflex RS Turboで印刷できるモデルにはどのようなものがありますか?

このプリンターは、以下のような高精細かつ用途に特化したモデルの造形に優れています。複雑な幾何学的形状に対応でき、ミニチュアモデルやアーマーパーツも容易に製作可能です。フィギュア、スタチュー、テーブルチェス、可動モデル、電子製品、アウトドア用品。試験やプレゼンテーション用のエンジニアリンググレードの部品。ジュエリーのプロトタイプ、金型、フィギュアなどの精巧なモデル。部品やハウジングなど、さまざまな完成品や産業用途。
