385+ nm UV Light Source

Experience 1.5 times more powerful resin curing effect than that of other 3D printers*.

HeyGears Reflex resin 3D printer with 385+nm light source delivering 1.5× stronger resin curing than other 3D printers
HeyGears Reflex resin 3D printer with 385+nm light source showing 1.5× stronger resin curing compared to other printers

C5 Ball Screw Z-axis

Eliminate layer gaps with a Z-axis repositioning accuracy of ±2 µm.

HeyGears Reflex Turbo resin 3D printer Z - axis repositioning difference at 50μm layer thickness
HeyGears Reflex resin 3D printer force sensors detect resin residue as small as 0.2mm and auto-stop on detection or print failure

High-sensitivity Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

Load video: <p>A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 μm for automatic leveling.</p>

Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 μm for automatic leveling.

Load video: <p>Resin quantity detection with an accuracy of within 5 g, and automatic resin refill before and during printing.</p>

Automatic Resin Refill

Resin quantity detection with an accuracy of within 5 g, and automatic resin refill before and during printing.

Load video: <p>The heated resin tray elevates resin temperature from 50 F (10°C) to an optimal 73 °F (22 °C) in 20 minutes, while auto heating maintains this temperature throughout the printing process for optimal results.</p>

Automatic Resin Heating

The heated resin tray elevates resin temperature from 50 F (10°C) to an optimal 73 °F (22 °C) in 20 minutes, while auto heating maintains this temperature throughout the printing process for optimal results.

Load video: <p>*Data sourced from HeyGears Lab, tested with PAS10 standard modeling resin.</p>

Precise Assembly for Multi-Part Models*

*Data sourced from HeyGears Lab, tested with PAS10 standard modeling resin.

HeyGears Reflex 3D printed models compared to digital designs, 90.6% achieving surface tolerance ≤0.05mm

90.6% Detail Restoration

Comparing the 3D printed models and their digital designs, 90.6% of the 3D printed models have a surface tolerance of ≤0.05 mm.

*Data sourced from HeyGears Laboratory

Intelligent Regional Exposure

By identifying various key regions of each layer, such as support structures as well as inner and outer shells, and curing them separately, Reflex Turbo significantly improves the surface hardness and support strength of prints, especially those printed with high-tensile-modulus materials*.
*Such as ABS-like resin, PVC-like resin, nylon-like resin, elastic resin, etc.

HeyGears Reflex resin 3D printer separately cures supports and shells to improve surface hardness and support strength

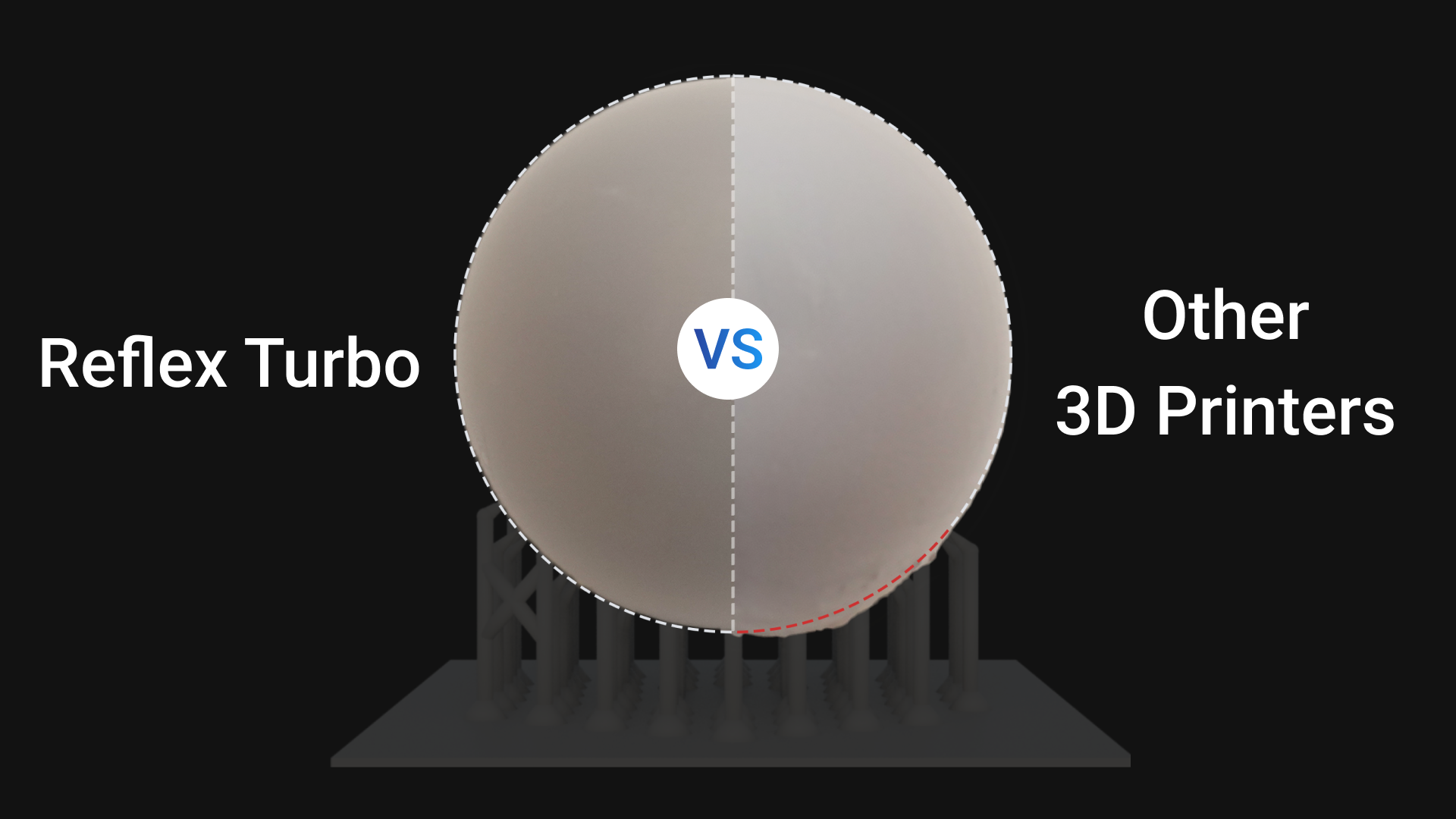

HeyGears Resin 3D Printed Sphere Surface Quality Comparison Reflex Turbo vs Other 3D Printers

Advanced Z-axis Compensation

The process package allows the Reflex Turbo printer to adjust the Z-axis conmpensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types. This approach minimizes deformation and resin buildup on support surfaces.

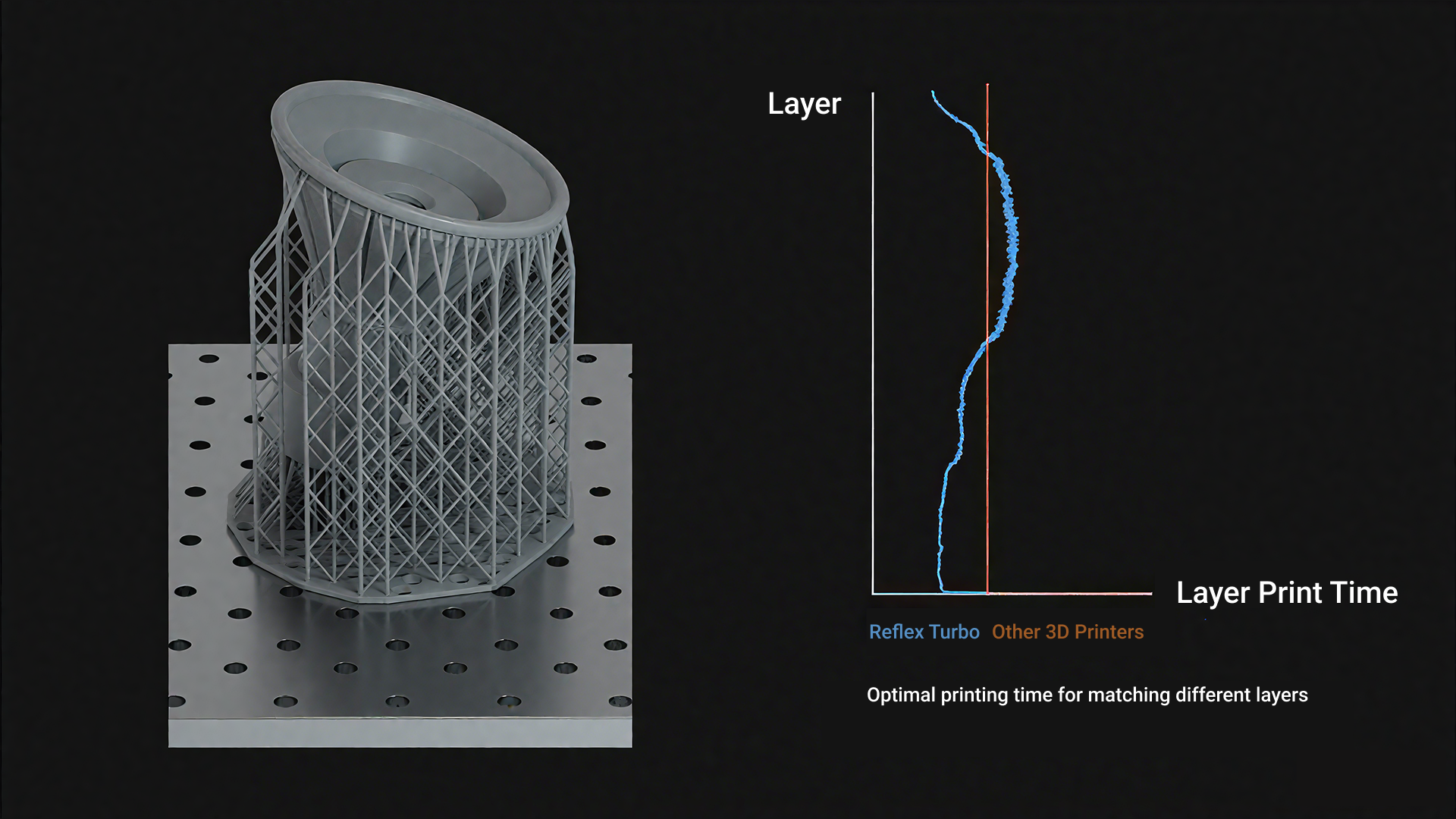

HeyGears Resin 3D printed lattice structure model with layer print time comparison graph

Dynamic Motion Algorithm 3.0

This algorithm evaluates the printing difficulty for each layer based on vinters factors, including cross-sections, part spacing, and quantity, and select the appropriate parameter set from 18 adapted motion control options.

Printing Consistency Across the Build Plate

The LCD screen is pre-calibrated to ensure light intensity variations are within 3%* for consistent printing results across the build plate.

*Data sourced from HeyGears Lab.

HeyGears LCD Screen Light Intensity Visualization

Printing Consistency During Printer Lifetime

By testing and recording the light source aging data, Reflex Turbo provides automatic light intensity compensation so users get consistent printing results during the whole printer life cycle.

HeyGears Reflex resin 3D printer with automatic light intensity compensation for consistent prints throughout its lifetime
UltraPrint-Modeling PAT10 88% Light Transmittance Resin - Crystal-Clear Prints for Optical and Display Models

88% light transmittance

UltraPrint PAT10 Transparent Resin

Load video: <p>PAE20 Elastic Tooling Resin (70A)</p>

Tear strength 68 N/mm

PAE20 Elastic Tooling Resin (70A)

Load video: <p>PAU20 General Purpose Tooling Resin (PC-like)</p>

Flexural strength 109 MPa

PAU20 General Purpose Tooling Resin (PC-like)

Specifications

3D Printing Technology:

LCD (MSLA)

Build Volume:

191*121*220 mm

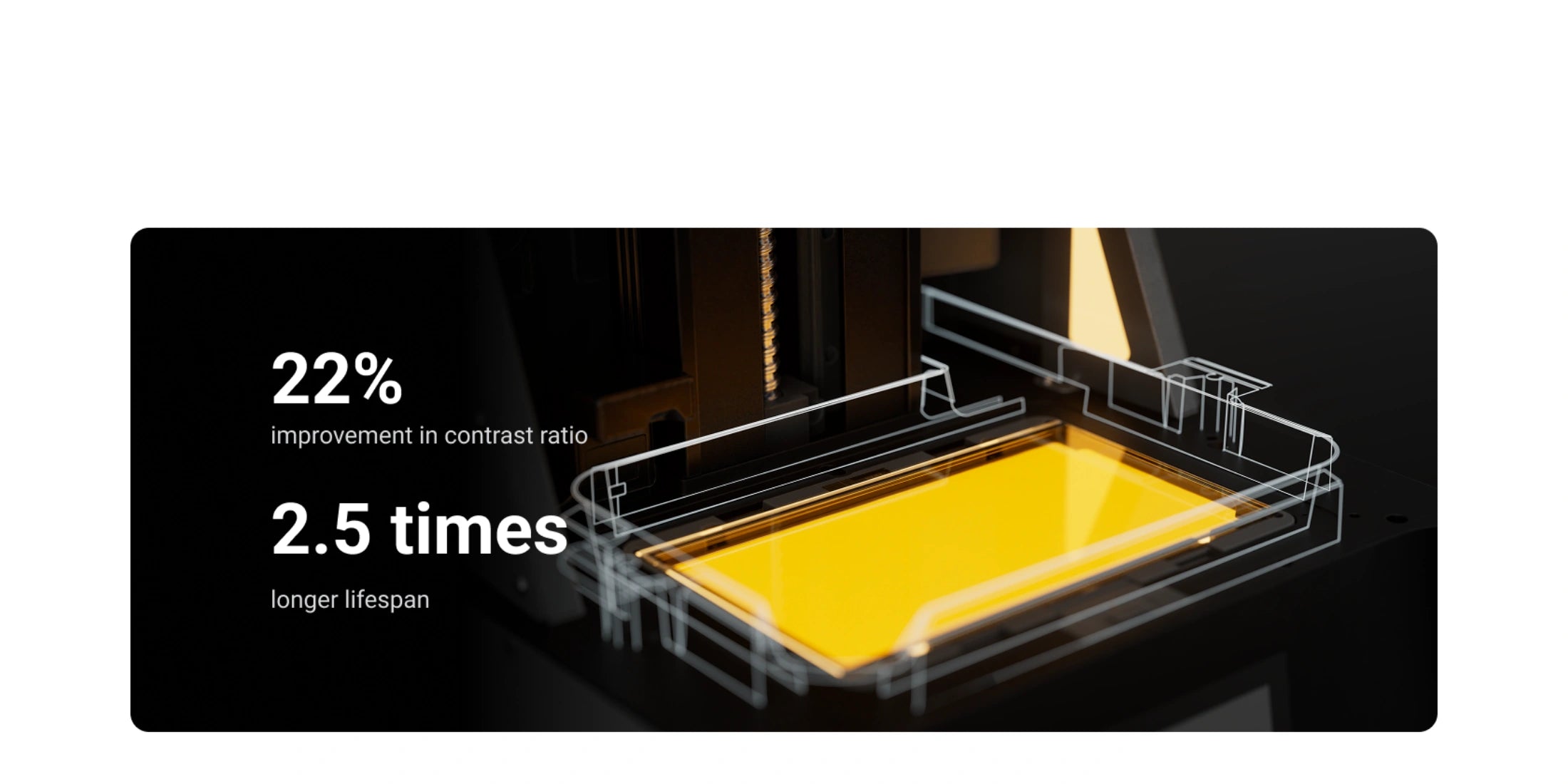

Screen:

9.25-inch Amber Screen

Optical Wavelength:

385+ nm

Build Height:

220 mm

XY Native Pixel:

33 μm

Accuracy:

±16 μm

Layer Thickness:

50 μm

Dimensions:

400*420*572 mm

Connectivity:

USB/WIFI/Ethernet

Weight:

25 kg

Voltage:

100-240 V~50/60 Hz

Rated Power:

350 W

Compatible Resin:

All Resins

UI Language:

English,Chinese,Japanese

What's In the Box(Overview)

Printer X1
Power Cord X1
Resin Tank X1
Build Platform X1
LCD Screen Tape X1
Spare Release Film X1
Spare Screws for Release Film X2
Rubber Gloves X2
Allen Wrench X3
Part Removal Tool X1
Scraper X10
Pliers X1
Simple Cleaning Box X1
Filter Paper X5
Residue Remover X1
Multifunctional Handle X1

What's In the Box(Incomplete List)

  • reflex printer icon

    Reflex Turbo Printer

  • Resin Tank Icon Design by HeyGears

    Resin Tank

  • Build Platform Icon for Resin 3D Printing

    Build Platform

  • LCD Screen Tape Icon

    LCD Screen Tape

  • Spare Release Film

    Spare Release Film

  • resin tank sensor

    Resin Tank Sensor

  • Power Cord Icon

    Power

  • and more!

  • 5 stars: 12 (86%)
  • 4 stars: 1 (7%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (7%)
Some of the reviews shown are from related products the merchant grouped with this one.
W
Will Green
Best in It's Class! Wait, It is in a class by itself!

Yes, believe the hype! There is simply no better printer for the "prosumer" than this. Avoid the inkling to "cheap out" and buy the lower priced models. This is the one you want. My only gripe is the Blue Print studio app. Yes it does a fine job, but it is counter intuitive and hard to navigate. It should be completely revamped. Anyway, buy this printer and the resin to go with it, you will have the best prints you have ever seen!

H
Hugo Ménard
Exeptional resin printer

Exeptional resin printer with print failure down to 1/20 for my part, with so much accuracy that I had to modify every single 3D parts I made to remove most of the play I had to have with my previous printer.

The Blueprint is a must have, very clear and very easy to learn tho I had trouble finding how to send to the printer. After finding that, printing successfull part never been so easy.

A bit of down side to me is the resin level that can be a bit lost sometime so I simply disabled the little bridge that prevent the resin to flow and ignore the warning about low resin.

L
Lex Drakoullias
One printer to rule them all

One printer to rule them all.
Pulse module is worth it.
App service support is fast & excellent.
Blueprint is now my favorite slicer.

J
Jason Soukeras
Amazing printer! Reflex

Cannot fault this printer in anyway, absolutely love it. So precise and details are so sharp. Hats off to heygears on this one!

G
George Biskitzoglou
Proffesional

Proffesional Results

C
Captain nic
It is giving great prints,but.

It is giving great prints, ive only used pac 10 and it makes things simpler, usually set and forget, anything with detail will need to be supported somewhat manually still and also oriented but other than that its amazing, ill be doing a full review on youtube coming up. I paid for mine so ill say whatever I want. Over all great printer in short.

P
Patrick Hoefnagel
Unparalleled Excellence!

In life, you get what you pay for. I decided that my life is a very busy one and I don't have an excessive amount of time to spend sweating the small stuff. I wanted to invest in an extremely user friendly ecosystem that just works. Turns out that Hey Gears nailed it! I have had one of the best user experiences of my life buying into a printer, wash station, and curing station than I could have ever hoped for. The printer itself is built like a high quality tank. Its durable, hefty, solid, premium, outstanding piece of technology! No calibration, just set up and run and my prints are beyond excellent! I am in shock at the fact that out of 10 print jobs I have had zero failures. There are just no words to properly describe what an excellent printer this is. I would buy again 12/10. I will sum up my experience with the fact that you absolutley do get what you pay for, and frankly in this instance I could not be more satisfied.

A
Alexandria

Bought a HeyGears UltraCraft Reflex and it’s been a nightmare: auto-level failed out of the box, back foot spins freely, and every tall print has a band/shift at ~140mm Z. Not reliable for paid work.

T
Thomas Hermansen

Fantastic printer. No print faults as of yet.

k
kenneth rich
Excellent Printer

This printer is IDEAL for those new to the hobby (like me) who wish for great prints right from the start without the guessork. Like many Youtubers have pointed out...and they are right, your NOT locked into Heygears resin. If I could offer one thing to change, that would be the cost of replacement release film....The Blueprint studio slicer is awesome BUT when you use the "Repair" function, and it finds issues, there is no explination what those issues mean or how to fix them using 3D software such as Blender. Same holds true for the "Printability" function.

T
Tomas K.
Worth it!

Sturdy build, good resins and quality accurate prints, no need to calibrate, just a little slow - which is not much of a concern for me. Worth it!

D
David Phillips
Amazing for beginners!

For printing miniatures this printer is perfect. Took it out of the box, add resin and print. I was worried about the mess, but I’ve found that it’s not that bad at all. I do wish the build plate was bigger.

J
Jaime Acosta
Very Happy

I bought this exclusively for casting and I have not been disappointed. The prints are great and the castings are flawless.

J
J.S.B.
Remarkable, functional, well thought out

The good-to-great:
* Resin handling, auto-fill, auto-parameter-setting
* Resin price better than expected
* Switched to this printer to get dimensional accuracy, and have not been disappointed.
* Clever resin tank cleaning.
* Clever leveling and zeroing.
* Have run about 5Kg of resin in first month to make ~40 parts, only 4 fails.
Would be good to improve:
- Resin auto fill rate too slow for thick-wall parts; horizontal cracks show up due to starvation.
- Would help to be able to manually selective remove a few of the automatically generated supports.
