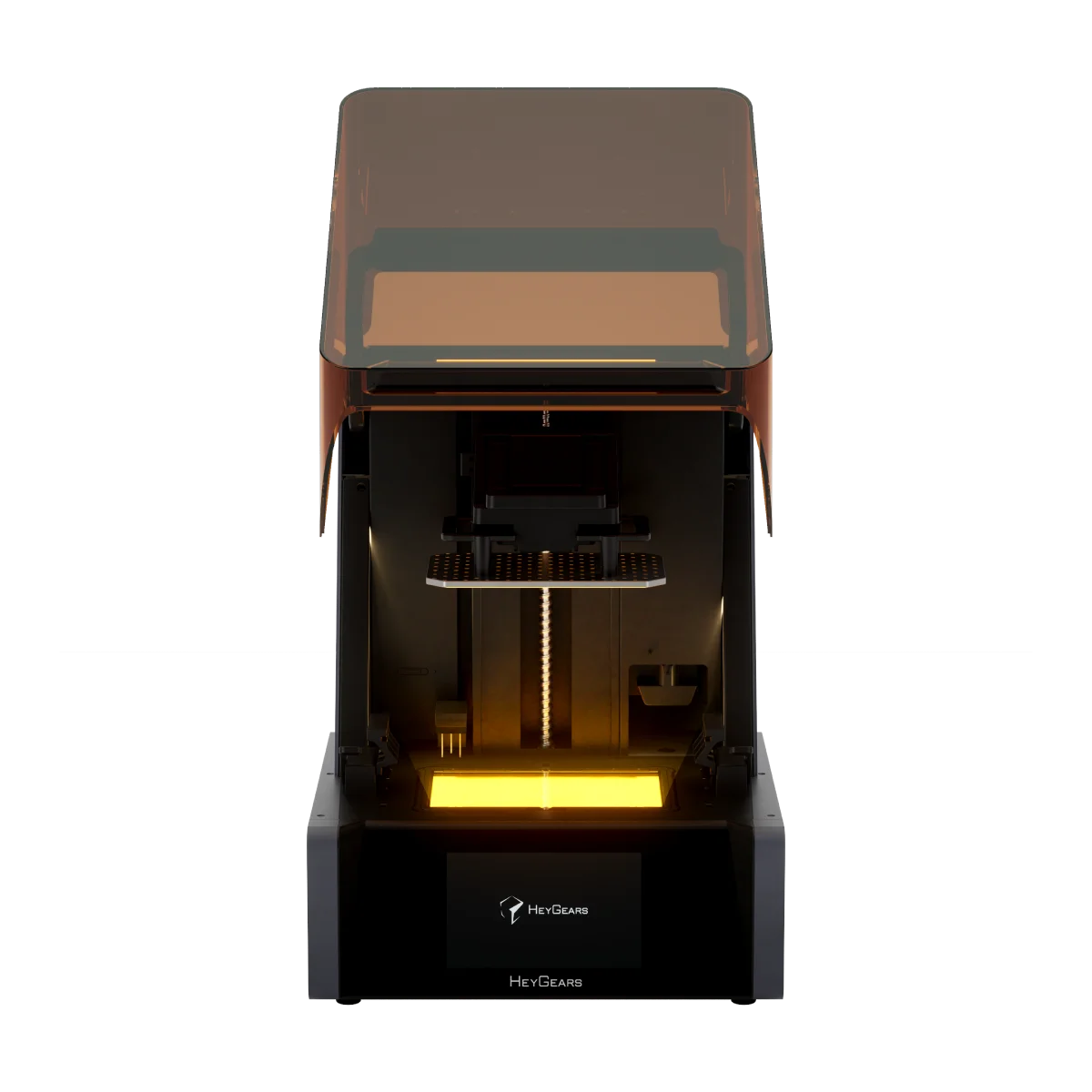

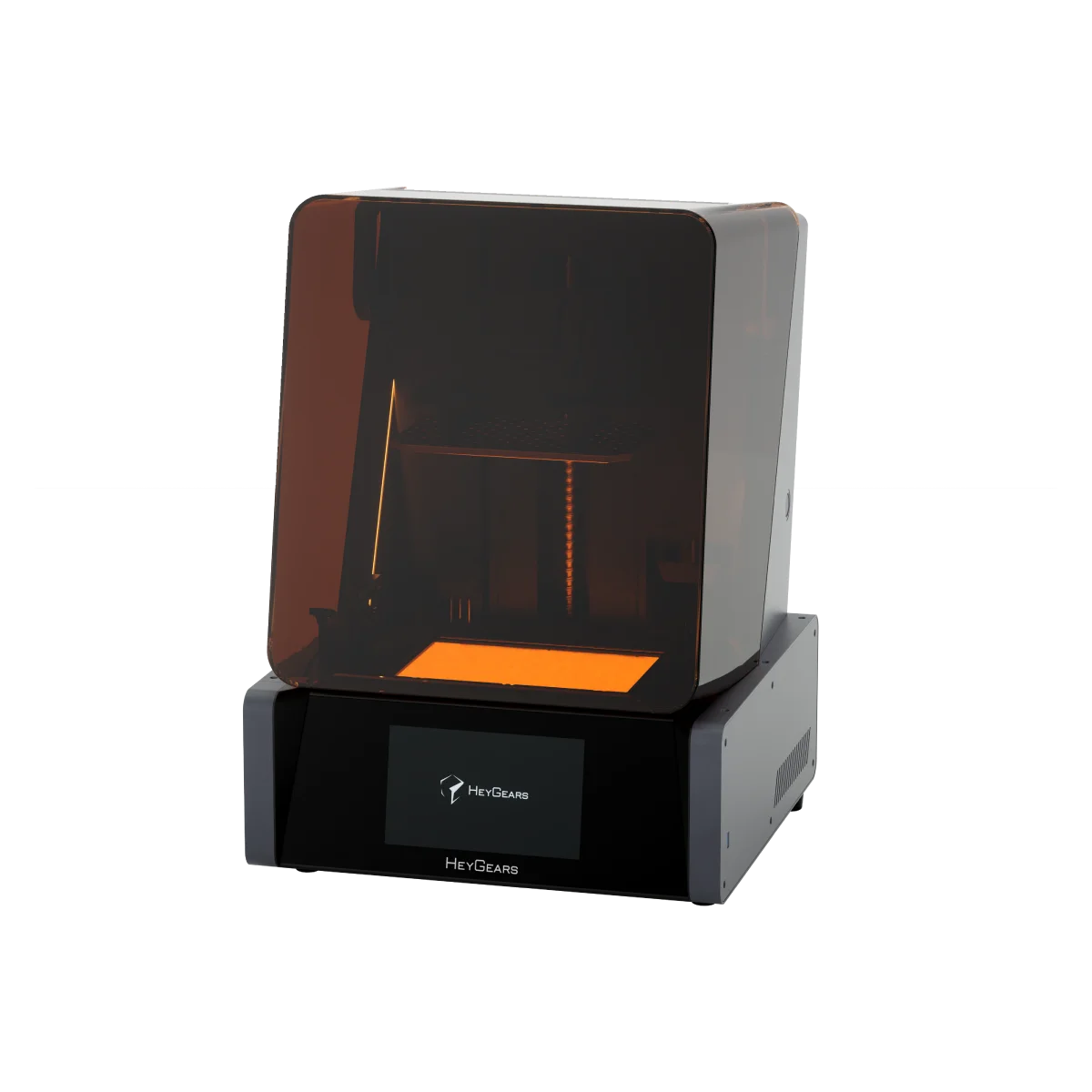

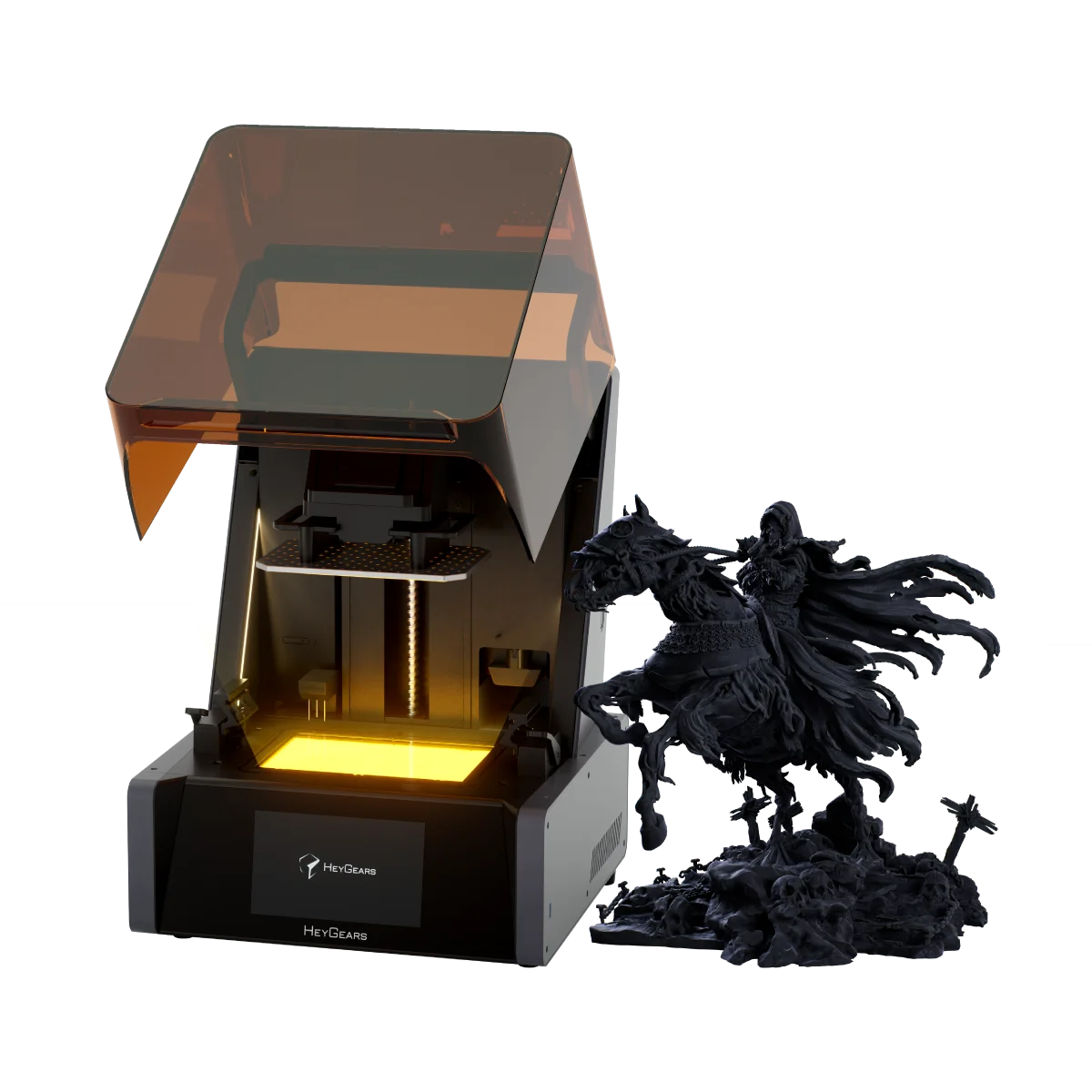

UltraCraft Reflex Turbo 3D Printer （Pre-Order)

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 μm for automatic leveling.

Resin quantity detection with an accuracy of within 5 g, and automatic resin refill before and during printing.

The heated resin tray elevates resin temperature from 50 F (10°C) to an optimal 73 °F (22 °C) in 20 minutes, while auto heating maintains this temperature throughout the printing process for optimal results.

*Data sourced from HeyGears Lab, tested with PAS10 standard modeling resin.

Comparing the 3D printed models and their digital designs, 90.6% of the 3D printed models have a surface tolerance of ≤0.05 mm.

*Data sourced from HeyGears Laboratory

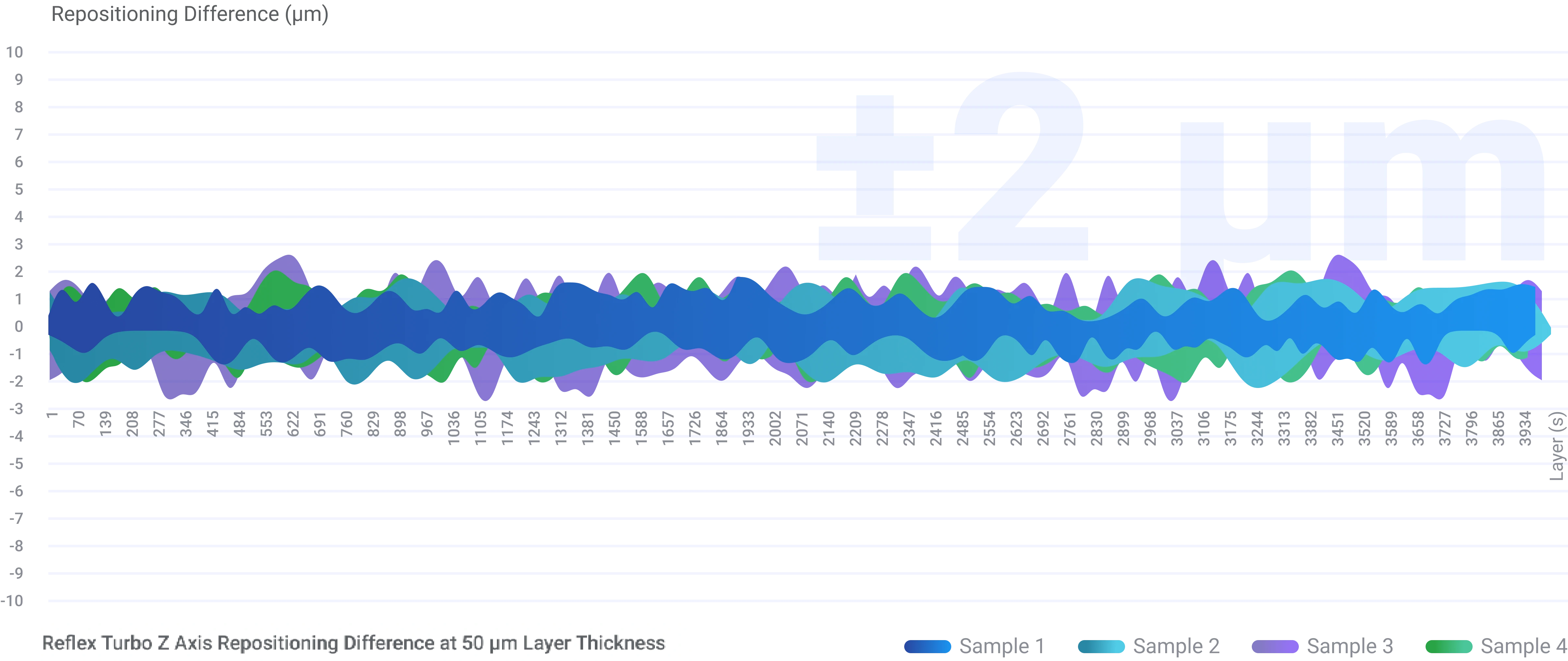

The process package allows the Reflex Turbo printer to adjust the Z-axis conmpensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types. This approach minimizes deformation and resin buildup on support surfaces.

This algorithm evaluates the printing difficulty for each layer based on vinters factors, including cross-sections, part spacing, and quantity, and select the appropriate parameter set from 18 adapted motion control options.

UltraPrint PAT10 Transparent Resin

PAE20 Elastic Tooling Resin (70A)

PAU20 General Purpose Tooling Resin (PC-like)
