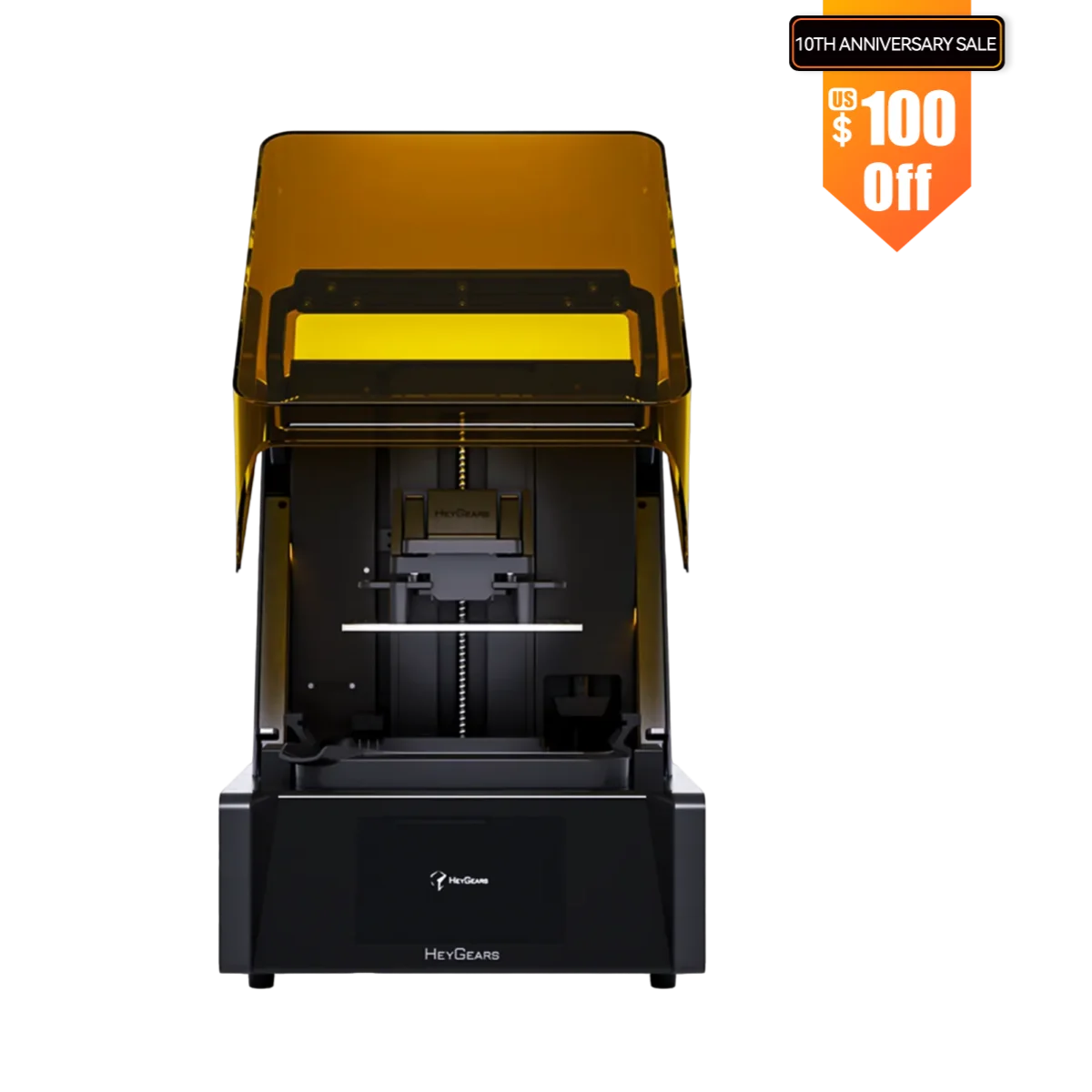

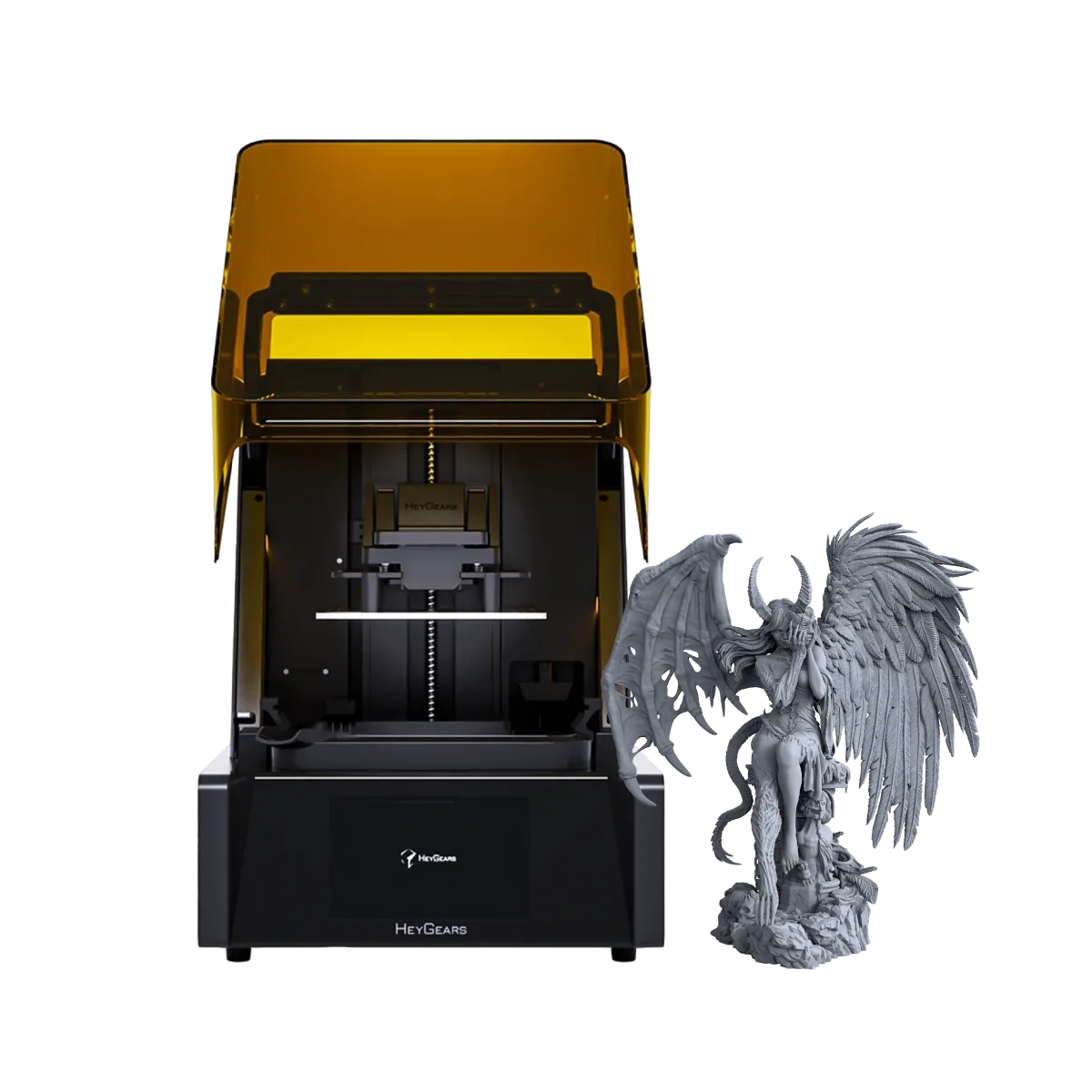

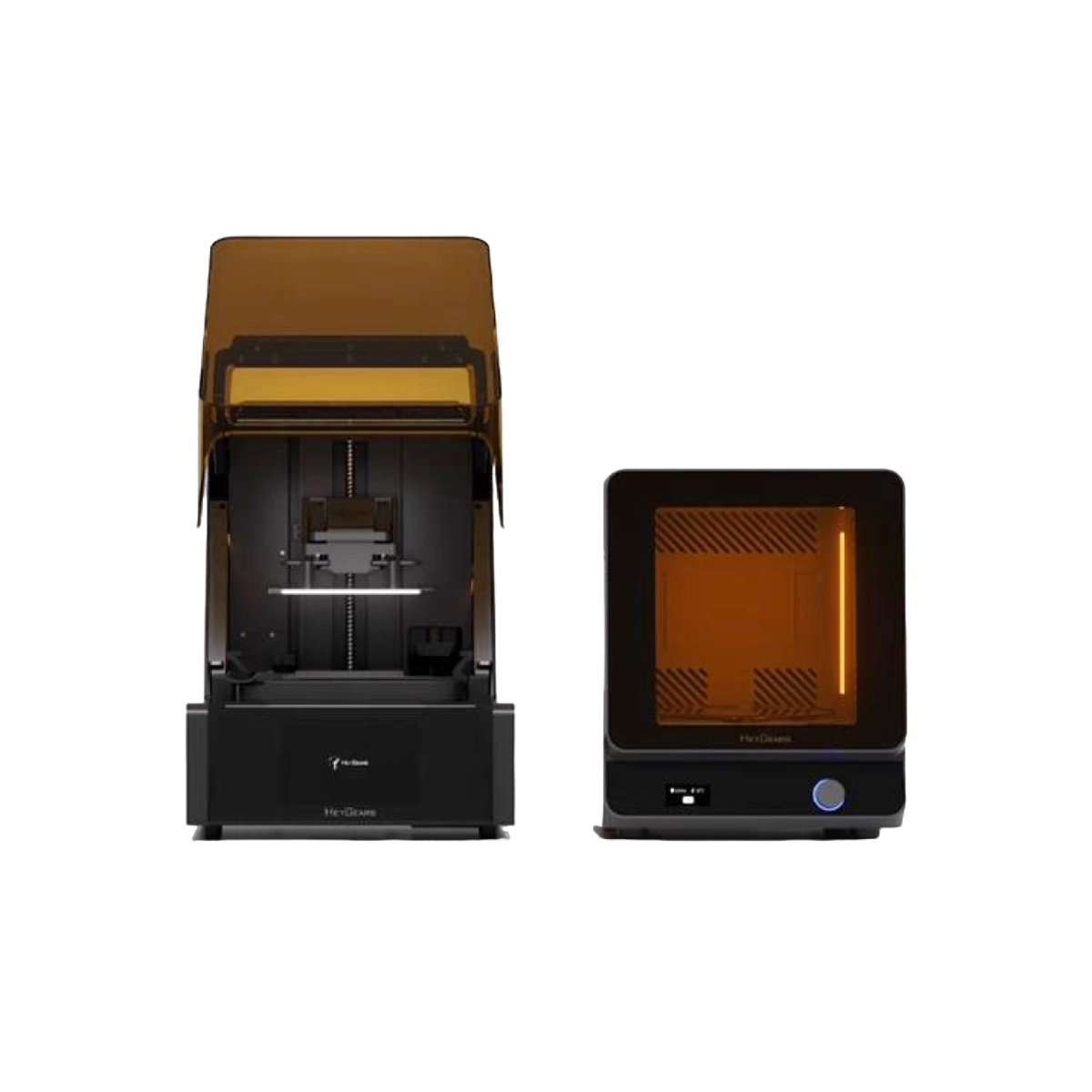

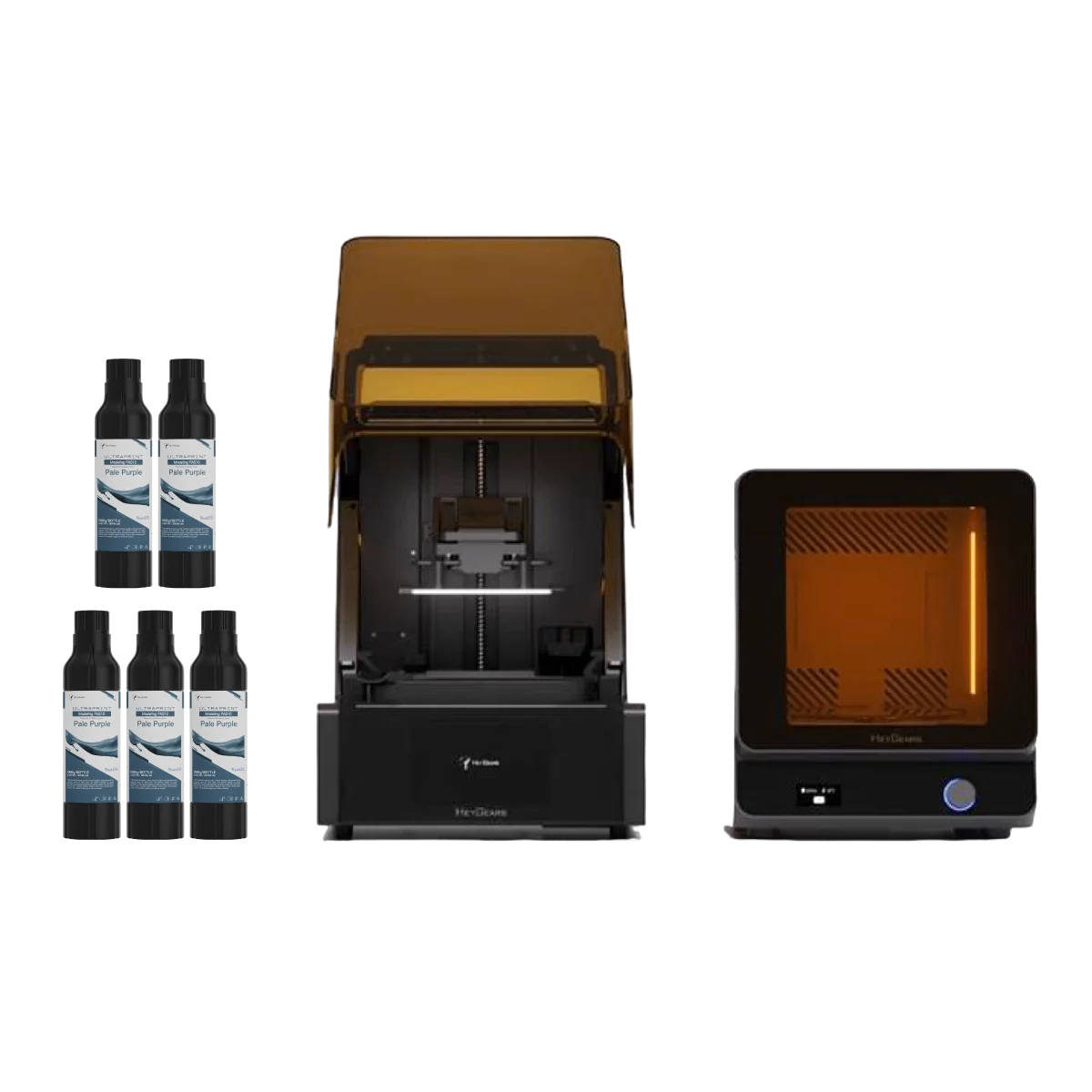

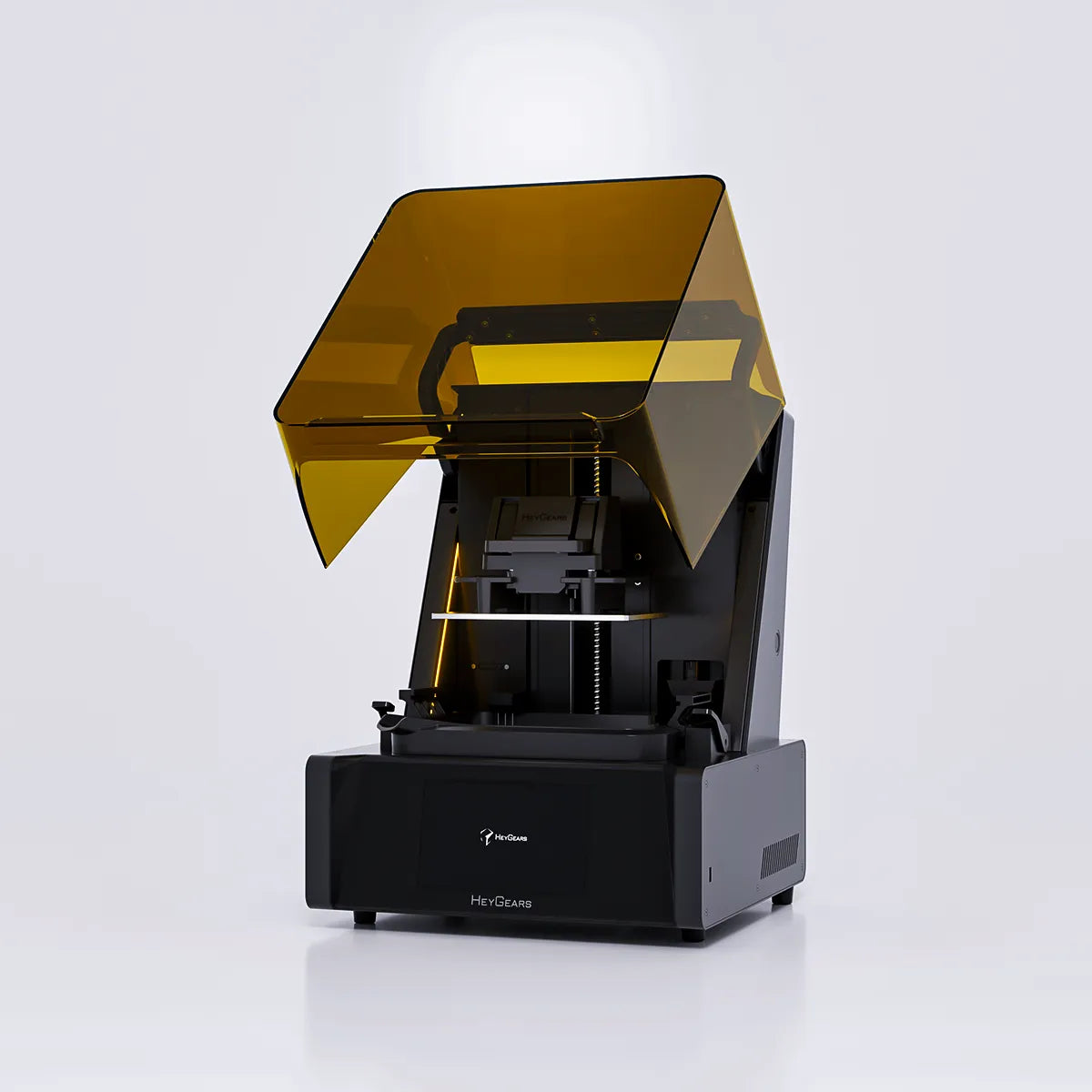

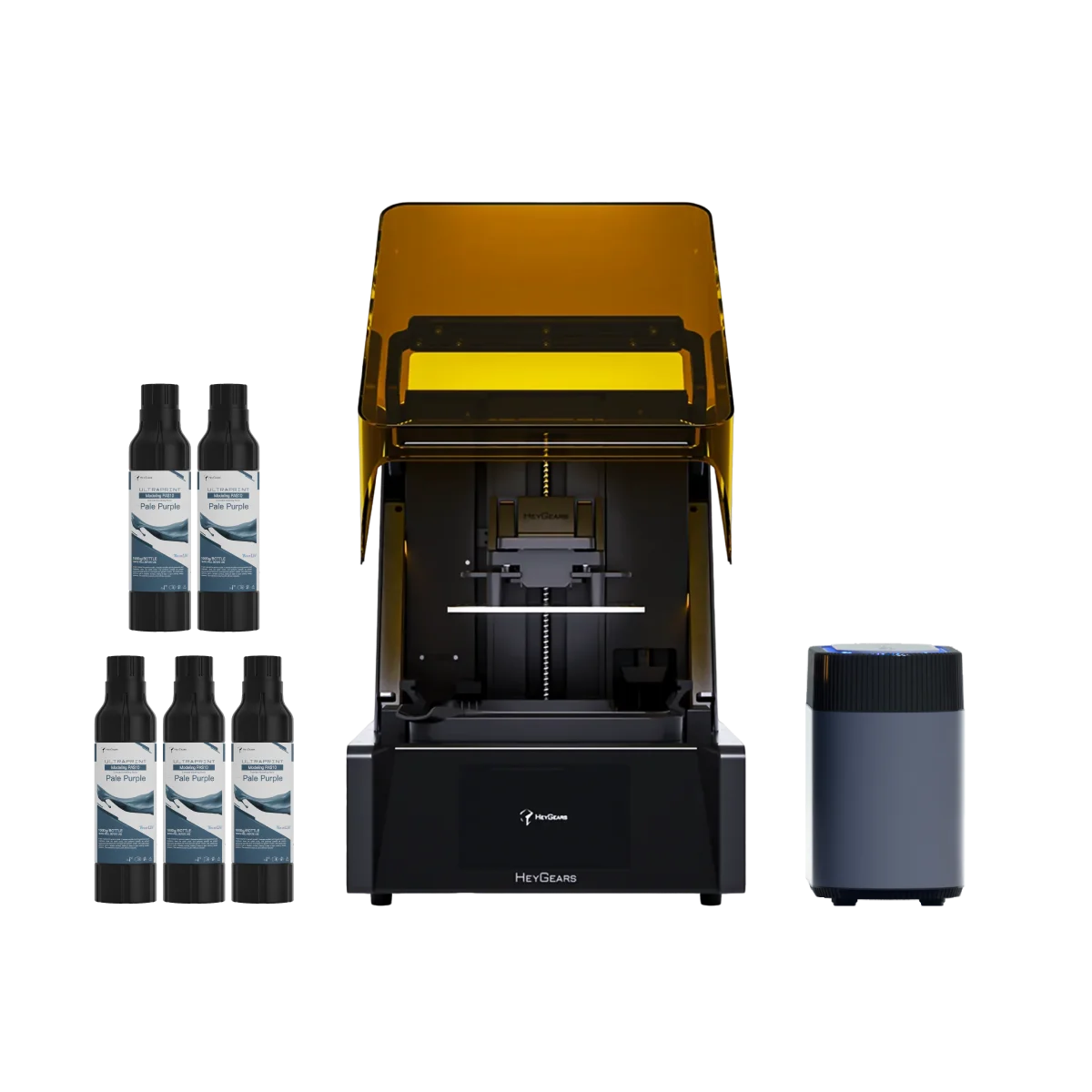

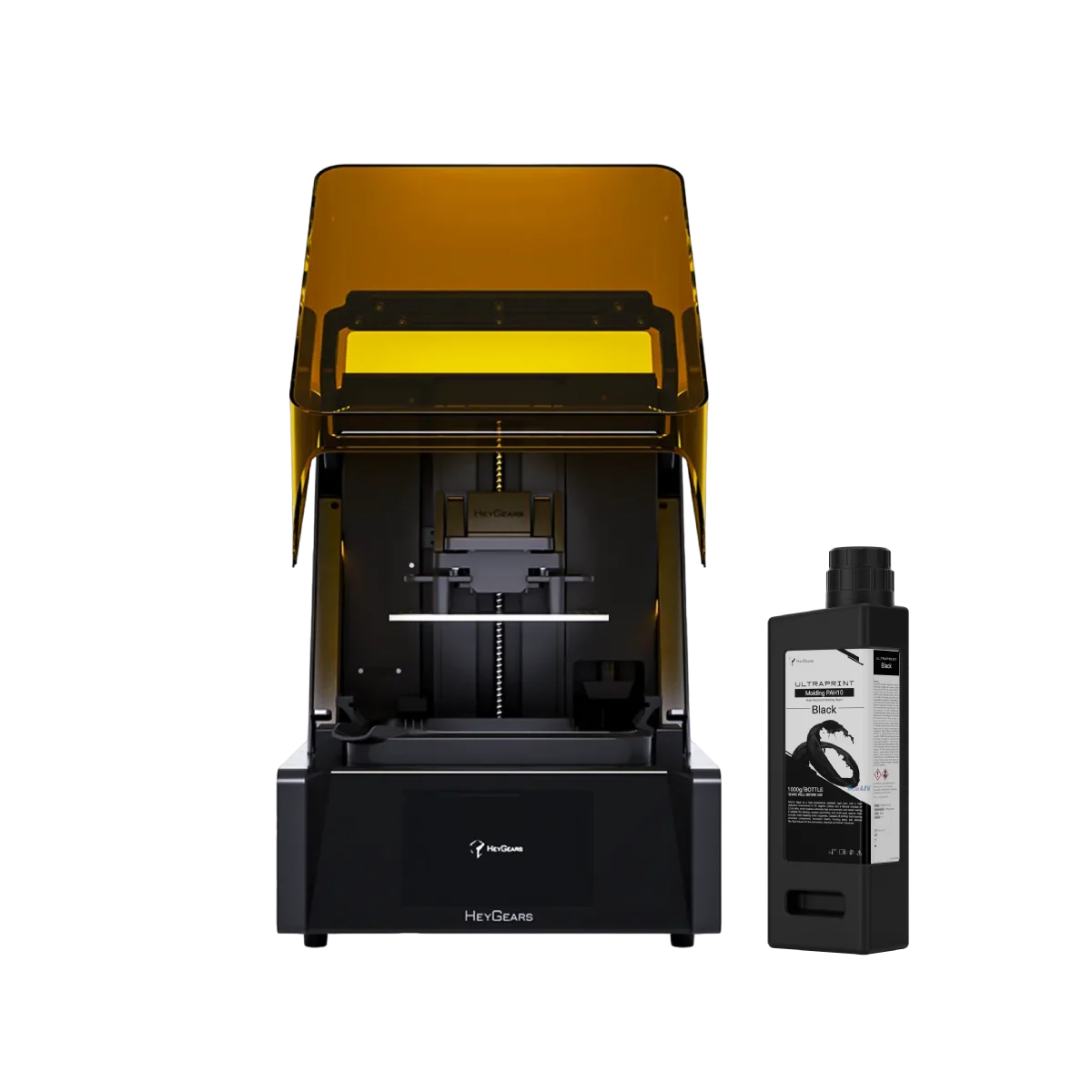

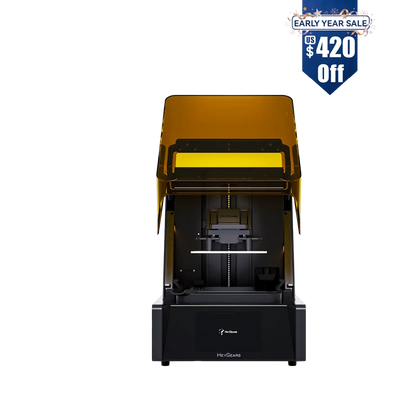

UltraCraft Reflex 3D Printer

$1,39900
$000
Designed for a worry-free 3D printing process. Shape your ideas with a printer powered by smart AI algorithms and automated features to easily achieve commercial-grade final results.

Product Highlights

  • Results-Focused Printing Strategies
  • Smart AI Peeling Force Management
  • 33 μm Precision
  • Auto Resin Level Detection
  • Auto Heated Tray
  • 90.6% Detail Restoration Rate
  • 90% Consistency
Quantity
Only 178 left

UltraCraft Reflex 3D Printer

$1,39900
One-Year Warranty
Back your purchase with a 12-month quality guarantee.
Global Support
We take pride in leading a worldwide network of premium services through R&D, production, training, and technical support.
Professional Customer Service
Our experienced and dedicated staff is always ready to assist you with your 3D printing needs.

Product Overview

Your One-stop Production Platform
Professional Hardware
with Automated Features
385 nm UV
Light Source
Experience 1.5 times more powerful resin curing effect than that of other 3D printers*.
Other Printers
405 nm UV
Reflex
385 nm UV
*compared to resin printers using 405 nm UV wavelength curing.
C5 Z-axis Module
Eliminate layer gaps with a Z-axis repositioning accuracy of ±2 µm.
385 nm UV Light Source
Experience 1.5 times more powerful resin curing effect than that of other 3D printers*.
Other Printers
405 nm UV
Reflex
385 nm UV
*compared to resin printers using 405 nm UV wavelength curing.
C5 Z-axis Module
Eliminate layer gaps with a Z-axis repositioning accuracy of ±2 µm.
View Forms
High-sensitivity LCD Screen Force Sensor
With a force sensor accuracy of 0.1 N, residue with a size of 0.2 mm is detectable.
Automatic Build Plate Leveling
With a floating screen structure, Reflex can automatically level build plate inclinations of up to 0.15° and eliminate gaps between the platform and tray of up to 150 μm.
Automatic Resin Refill
Resin amount detection (accuracy within ±5 g) and automatic refill before and during printing.
Automatic Resin Heating
By heating the resin tray, resin temperature can be increased from 50 ℉ (10 ℃) to an optimal printing temperature of 73 ℉ (22 ℃) in just 20 minutes. Auto heating maintains temperature during printing process to facilitate successful results.
High-sensitivity LCD Screen Force Sensor
With a force sensor accuracy of 0.1 N, residue with a size of 0.2 mm is detectable.
Automatic Build Plate Leveling
With a floating screen structure, Reflex can automatically level build plate inclinations of up to 0.15° and eliminate gaps between the platform and tray of up to 150 μm.
Automatic Resin Refill
Resin amount detection (accuracy within ±5 g) and automatic refill before and during printing.
Automatic Resin Heating
By heating the resin tray, resin temperature can be increased from 50 ℉ (10 ℃) to an optimal printing temperature of 73 ℉ (22 ℃) in just 20 minutes. Auto heating maintains temperature during printing process to facilitate successful results.
Exceptional Results with
Precise Technology
0.136 mm Minimum Print Detail
*Test with UltraPrint PAP10 Precise Detail Resin
Zero Tolerance Assembly Results
*Test with UltraPrint PARP10 Rapid Prototyping Resin
90.6% Detail Restoration
Comparing the 3D printed models and their digital designs, 90.6% of the 3D printed models have a surface tolerance of ≤0.05 mm.
*Data sourced from HeyGears Laboratory
Intelligent Regional Exposure
By identifying various key regions of each layer, such as support structures as well as inner and outer shells, and curing them separately, Reflex significantly improves the surface hardness and support strength of prints, especially those printed with high-tersile-modulus materials*.
*Such as ABS-like resin, PVC-like resin, nylon-like resin, elastic resin, etc.
Advanced Z-axis Compensation
Reflex decreases surface deformation and shortens the post-processing time by setting accurate Z compensation parameters for different materials and supported surface sections/slopes.
AI-assisted Peeling Force Management
Reflex automatically applies the optimal peeling parameters to each printed layer to improve printing efficiency and results by detecting characteristics of the sliced layer and calculating the results of using different peeling forces.
0.136 mm Minimum Print Detail
*Test with UltraPrint PAP10 Precise Detail Resin
Zero Tolerance Assembly Results
*Test with UltraPrint PARP10 Rapid Prototyping Resin
90.6% Detail Restoration
Comparing the 3D printed models and their digital designs, 90.6% of the 3D printed models have a surface tolerance of ≤0.05 mm.
*Data sourced from HeyGears Laboratory
Intelligent Regional Exposure
By identifying various key regions of each layer, such as support structures as well as inner and outer shells, and curing them separately, Reflex significantly improves the surface hardness and support strength of prints, especially those printed with high-tersile-modulus materials*.
*Such as ABS-like resin, PVC-like resin, nylon-like resin, elastic resin, etc.
Advanced Z-axis Compensation
Reflex decreases surface deformation and shortens the post-processing time by setting accurate Z compensation parameters for different materials and supported surface sections/slopes.
AI-assisted Peeling Force Management
Reflex automatically applies the optimal peeling parameters to each printed layer to improve printing efficiency and results by detecting characteristics of the sliced layer and calculating the results of using different peeling forces.
Consistent Results for
Scalable Production
Printing Consistency Across Build Plate
All LCD screens sent out are pre-calibrated to ensure a light uniformity of 90% so users get consistent printing results from all areas of the build plate.
Printing Consistency During Printer Lifetime
By testing and recording the light source aging data, Reflex provides automatic light intensity compensation so users get consistent printing results during the whole printer life cycle.
Printing Consistency Across Build Plate
All LCD screens sent out are pre-calibrated to ensure a light uniformity of 90% so users get consistent printing results from all areas of the build plate.
Printing Consistency During Printer Lifetime
By testing and recording the light source aging data, Reflex provides automatic light intensity compensation so users get consistent printing results during the whole printer life cycle.
View Forms
More Advanced Materials Available
Reflex provides a 1.5 times stronger curing effect than most other resin 3D printers* with its unique 385nm UV light, enabling the selection of more advanced materials and improved performance of finished prints.
*compared to resin 3D printers using 405 nm UV curing.
88% light transmittance
UltraPrint PAT10 Transparent Resin
Tear strength 20 N/mm
Elastic Resin
109 MPa flexural strength
High Strength and High Toughness Resin
88% light transmittance
UltraPrint PAT10 Transparent Resin
Tear strength 20 N/mm
Elastic Resin
109 MPa flexural strength
High Strength and High Toughness Resin
