Hear It From Our Users

See What You Can Create with RS Turbo

Model by Black Forge Game, printed with PAF10 Gray resin on the RS Turbo. Check out the stunning details come to life in this quick video!

HeyGears

@HeyGears

Epic 3D Printed Chess with PAF10 Clear resin on RS Turbo.

HeyGears

@HeyGears

Customize an interesting keycap for yourself

uncle jessy

@Uncle Jessy

Fresh 3D print incoming! 🔥 This time with Freki, fully resin printed by the amazing crew at

@blackforge_games

@blackforge_games

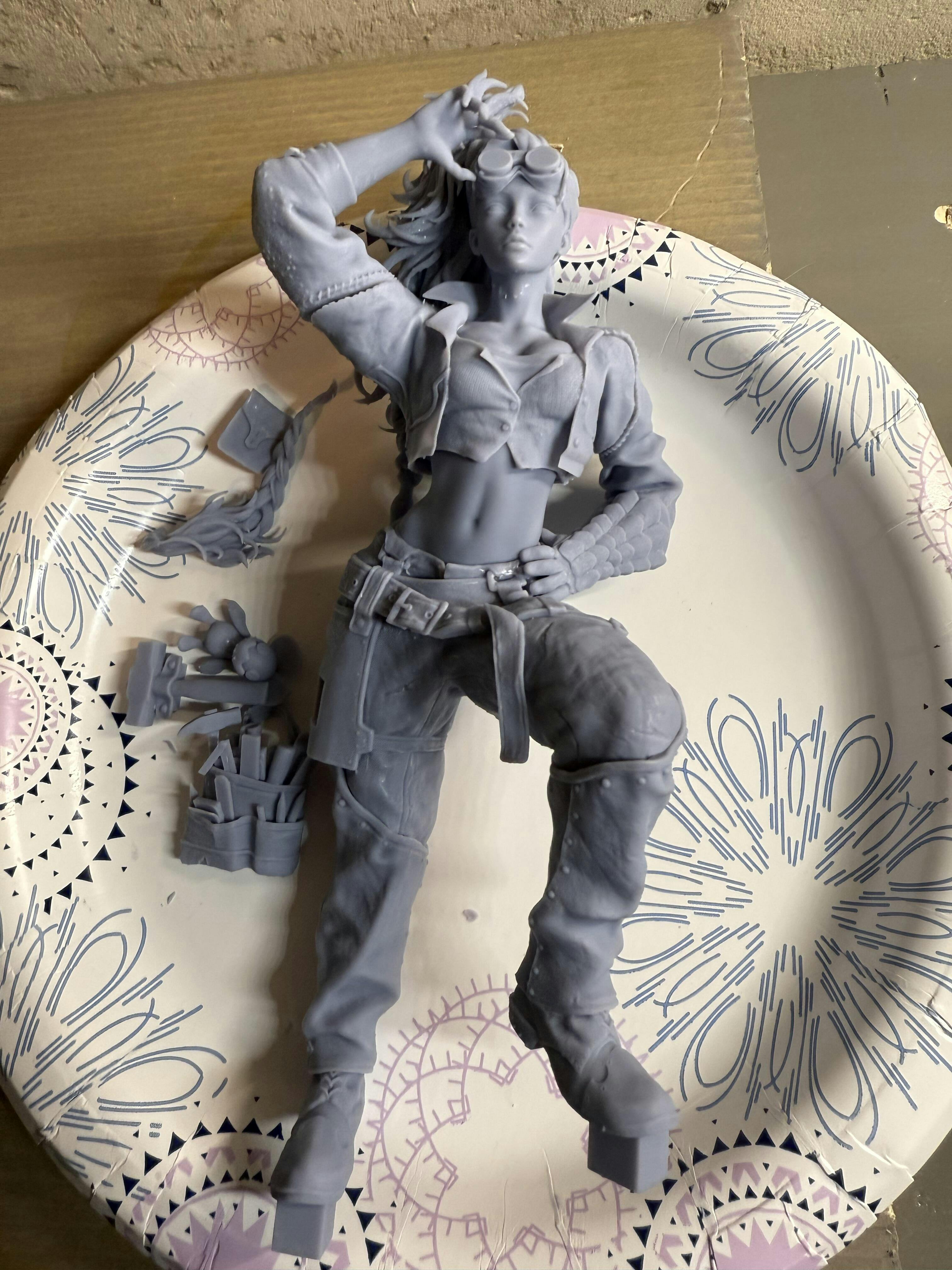

I brought this 19-inch Malice statue to life—from resin print to hand-painted finish.

@bunnygirlfactory-heygears printer user

@bunnygirlfactory

This helmet model by Abyss Art Studio, printed with RS Turbo and PAP10

HeyGears

@HeyGears

This helmet model by Abyss Art Studio, printed with RS Turbo and PAP10

HeyGears

@HeyGears

Optimized Amber Screen. Stunning Details with Fast Speed

HeyGears Resin 3D Printer Internal Optical Components Dyed Polarizer Film and High Precision Optical Film

High Contrast Ratio of 566:1

The Amber Screen features a custom composite design with dyed polarizer and optical films, boosting the contrast ratio to 566:1 — nearly a 60% increase over the previous generation.

HeyGears Resin 3D printed detail comparison, RS Turbo high-contrast screen vs low-contrast screen printers

Precise Prints with Sharper Details

The dyed polarizer film layer utilizes dye macromolecules, allowing for better control of light transmittance. This reduces overexposure or underexposure, ensuring sharp details for 3D prints.

HeyGears RS Turbo black part 3D printed with PAP10 resin, smooth defect-free surface from amber screen optical film technology

Smooth & Defect-Free Surfaces

The Amber Screen features an optical film layer engineered to transmit light at 90° optimal angles, reducing stray light reaching the curing layer and ensuring residue-free surface smoothness.

HeyGears RS Turbo resin 3D printer molecular structure showing UV-resistant dye macromolecules for longer screen lifespan

2 X Longer Lifespan

The dyed polarizer film features dye macromolecules with UV resistance and thermal stability to minimize degradation and reduce contrast decay. This helps maintain reliable light projection over long printing cycles, delivering a screen lifespan up to 2× longer than conventional LCD screens.

*Data sourced from HeyGears Lab. Molecular structure for illustration purposes only.

HeyGears RS Turbo resin 3D printer LCD light intensity heatmap with 60-zone calibration for precise 3D printing

Exceptional Light Uniformation

For accurate and reliable 3D printing, the LCD screen is divided into 60 calibrated zones. Full-screen calibration keeps light intensity variation within ±3%*, helping achieve a printing tolerance of <0.05 mm.

Load video: &lt;p&gt;The RS Turbo automatically calibrates the screen using&lt;strong&gt; &lt;/strong&gt;&lt;em&gt;&lt;strong&gt;NFC &lt;/strong&gt;&lt;/em&gt;data, keeping light intensity differences within &lt;em&gt;&lt;strong&gt;5%&lt;/strong&gt;&lt;/em&gt;* and &lt;em&gt;&lt;strong&gt;reducing variations in light intensity to ensure printing precision after screen replacement.&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;&lt;p&gt;*Data sourced from HeyGears Lab&lt;/p&gt;

Printed Results Assembly Comparison

The RS Turbo automatically calibrates the screen using NFC data, keeping light intensity differences within 5%* and reducing variations in light intensity to ensure printing precision after screen replacement.

*Data sourced from HeyGears Lab

Reliable C5 grade Z-axis Module

High repeat positioning accuracy ensures layer positioning errors are no more than 2 μm*. Tested with a 50 kg load across ten thousand runs.

Load video: &lt;p&gt;The adaptive process packages allows the RS Turbo printer to adjust the Z-axis compensation adaptively for each resin, to support up to &lt;em&gt;&lt;strong&gt;180 combinations&lt;/strong&gt;&lt;/em&gt;&lt;strong&gt; &lt;/strong&gt;of different angles, hole sizes, and edge types.&lt;/p&gt;

Adaptive Process Packages

The adaptive process packages allows the RS Turbo printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types.

HeyGears RS Turbo resin 3D printed vs other 3D printers cube comparison

Z-axis Compensation Comparison

This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.

Load video: &lt;p&gt;Easy to use and ready right out of the box, RS Turbo delivers &lt;em&gt;&lt;strong&gt;a smooth experience with intuitive slicer software, fast setup, minimal hassle,and impressive 3D print quality-even for beginners.&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

Start Easy. Print Like a Pro.

Great Prints Out of the Box

Easy to use and ready right out of the box, RS Turbo delivers a smooth experience with intuitive slicer software, fast setup, minimal hassle,and impressive 3D print quality-even for beginners.

Load video: &lt;p&gt;&lt;em&gt;&lt;strong&gt;Pre-Tuned Profiles&lt;/strong&gt;&lt;/em&gt; for HeyGears resins simplify challenging prints, from miniatures and figures to props, with sharp detail, high surface quality, and reliable durability. For needs beyond the presets, &lt;em&gt;&lt;strong&gt;Open Material Mode offers broader resin compatibility and custom parameter control.&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

Start Easy. Print Like a Pro.

Pre-tuned 30 μm Profile

Pre-Tuned Profiles for HeyGears resins simplify challenging prints, from miniatures and figures to props, with sharp detail, high surface quality, and reliable durability. For needs beyond the presets, Open Material Mode offers broader resin compatibility and custom parameter control.

Load video: &lt;p&gt;One-click slicing without manual adjustment.&lt;/p&gt;

Start Easy. Print Like a Pro.

Complete Pre-processing in Just One Minute

One-click slicing without manual adjustment.

Load video: &lt;p&gt;Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.&lt;/p&gt;

Automatic Pre-processing

Automatic Repair Prevents Failures

Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.

Load video: &lt;p&gt;Intelligently configured scaffold supports result in &lt;em&gt;&lt;strong&gt;reduced detachments and a higher printing success rate.&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

Intelligent Auto-Supports

Automatic Pre-processing

Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.

Load video: &lt;p&gt;Force sensors with a sensitivity of &lt;em&gt;&lt;strong&gt;0.1 N&lt;/strong&gt;&lt;/em&gt;&lt;em&gt; &lt;/em&gt;can detect resin residue as small as &lt;em&gt;&lt;strong&gt;0.2 mm &lt;/strong&gt;&lt;/em&gt;and can auto-stop upon detection or print failure.&lt;/p&gt;

Self-check before every print

Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

Load video: &lt;p&gt;A floating screen system with a deviation of &lt;em&gt;&lt;strong&gt;0.15° eliminates gaps of up to 240 µm&lt;/strong&gt;&lt;/em&gt;* for automatic leveling.&lt;/p&gt;

Self-check before every print

Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm* for automatic leveling.

Load video: &lt;p&gt;The optional RS Turbo heated resin tank* uses an integrated heater for higher efficiency. It can elevate resin temperature from&lt;em&gt;&lt;strong&gt; 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*&lt;/strong&gt;&lt;/em&gt;, auto heating maintains this temperature throughout the printing process for optimal results.&lt;/p&gt;&lt;p&gt;&lt;em&gt;*Requires a separate purchase of the RS Heated &amp; Pulsing Release Resin Tank*Data sourced from HeyGears Lab&lt;/em&gt;&lt;/p&gt;

Self-check before every print

Automatic Resin Heating

The optional RS Turbo heated resin tank* uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*, auto heating maintains this temperature throughout the printing process for optimal results.

*Requires a separate purchase of the RS Heated & Pulsing Release Resin Tank*Data sourced from HeyGears Lab

Load video: &lt;p&gt;&lt;em&gt;&lt;strong&gt;Automatic resin refill  &lt;/strong&gt;&lt;/em&gt;before and during printing.&lt;/p&gt;

Self-check before every print

Automatic Resin Refill

Automatic resin refill before and during printing.

Load video: &lt;p&gt;This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from &lt;em&gt;&lt;strong&gt;18 optimized motion control parameters to ensure quality while enhancing speed.&lt;/strong&gt;&lt;/em&gt;&lt;/p&gt;

Self-check before every print

Dynamic Motion Control

This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.

A Complete Production System

Specifications

3D Printing Technology:

LCD (MSLA)

Screen:

10.3-inch 8K Amber Screen

Optical Wavelength:

405 nm

Z-axis Module:

C5 Grade Accuracy

Build Volume:

222*122*228 mm

XY Native Pixel:

29.7 μm

Accuracy:

±15 μm

Layer Thickness:

30-100 μm

Weight:

20 kg

Rated Power:

180 W

Voltage:

100-240 V~50/60 Hz

Size:

380*360*584 mm

Connectivity:

USB/WIFI

Language:

English, Simplified Chinese, Japanese

Compatible Resin

PARP10、PAS10、PAWW10、PAP10、PAWR10、PAF10、PAWW20

Included in the Box

  • rs 3d printer

    Printer

  • Power Cord icon

    Power Cord

  • Part Removal Tool Icon

    Part Removal Tool

  • Resin Tank Icon

    Resin Tank

  • Build Platform for resin 3d printer Icon

    Build Platform

  • Allen Wrench Icon

    Allen Wrench

  • Scraper icon

    Scraper

  • 5 stars: 85 (91%)
  • 4 stars: 8 (9%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
J
J Rowan
I am a total rookie at 3D printing

I am a total rookie at 3D printing. Never done it before. The Reflex RS has been so incredibly easy to use. I am blown away. Within minutes of setting it up (which was a breeze) I was already printing. As a miniature Painter, this will change my life. I am so stoked to have this in my work area because now something that seemed so daunting, is easily handled in minutes.

R
Raymond McKeon
Worth the extra money to save you the extra trouble of other brands!

Been printing for a couple years but was tired of all the problems and issues that come with it taking away from my time at actually painting what I print... so figured it was time to upgrade and maybe even spend a little extra so I dont run into as many issues. Upon my research I found that's exactly what hey gears printers are! I've had it for a little over a week now and man did they not dissapoint! Plug and play!

V
Vas Obeyesekere
Worry free printer. Great for minis!

This is my first printer but I've been following resin printing for several years before choosing which company to invest in. The Heygears Reflex RS has been incredible, absolutely no regrets!

C
Cliff McMann
This is my first resin printer

This is my first resin printer. I’m deep into the learning curve, but have already printed 3 plates of miniatures. The plug and play ecosystem makes those first prints easy and exciting. The fact that HeyGears is opening that system up and responding to their users was what sold me on the system. I’m excited to be able to produce great results in such a short time, while knowing I can dive as deep into the hobby as I want. Now I just need to learn to paint faster.

M
Marc Rush
Moved over from another brand that I had constant problems with

Moved over from another brand that I had constant problems with. The RS Turbo has not only never failed but the quality of the prints is beyond my expectations. Able to get to painting which is why I’m doing the hobby and not constantly messing with settings or even doing loads of clean up.

J
James F Kappers
Although I own many other resin printers

Although I own many other resin printers, this one is on a completely different level. The engineering, precision, and overall performance are far more advanced than any of my previous machines. The print quality is noticeably superior — sharper details, smoother surfaces, and a level of consistency the others simply can’t match.

G
Gene Krawczyk
I bit the bullet and decided to get the heygears product

I bit the bullet and decided to get the heygears product. I have a elgoo saturn3 ultra and a older anycubic. I could never be guaranteed of a successful print and really wanted something like bambu labs where I buy their filament and everything works first time. I have given up trying different resins and settings to get just ok to below average results. You waste a lot of time,gloves,mess and ipa doing this.

First print worked flawlessly as they all seems to. After I had a couple of fails due to bad supports but now I have a rough idea what I am doing it works every time.
The slicer took a bit of getting used to and is based around having folders and completed sliced objects in there own directories. But once you understand it, you then do it as a workflow.

Sending files to the printer is effortless and remote printing works a charm.

You need to print this "HeyGears Reflex RS Drip Caddy MD Remix" from bambu labs as sadly Heygears do not have a way to drain the build plate. There is a few different types. This one is a bit tight and I just filed it to make it a looser fit.

These are the resins I have tried. I doubt I will be using any other brand resins as these work. They deliver to me in about 4 days and I have no headaches. I cant be bothered printing another test object to attempt to get the best print and waste a day of my life on multiple prints.

PAS10 works well is cheap, when I print minis it has some flexibility but small bits still break if dropped.
PAF10 costs more and dropped minis survive. I have just ordered 3 more bottles.
PAP10 I have only printed one item (A control panel holder)and appears good
PAF10 and PAP10 drain really well. If you let them drain for awhile the items are fairly clean requiring a lot less IPA and the supports come of easily.
PAS10 does not drain as good and requires more IPA.

My other 2 printers I will get rid of now as this machine works very well. I cant imagine turning them on again.
I just bought the Cure device as well. Dam expensive but when you see what you get you understand why.

Now the best part "resolution of the screen".
On a computer higher resolution you see a difference. Somehow on the Heygears I get better quality minis by a massive difference compared to my Saturn ultra which has a resolution of 11500 I think.
I am now reprinting a lot of minis as the quality is amazing.
I am now wondering if I should purchase the wash station
I put a pic of a warhammer model for size comparison. the archer is a model from stormlight note the arrow.
Gene

O
Oliver Gassman
Fantastic results from the first print

Fantastic results from the first print. I've never used a resin printer before so the learning curve is pretty steep, but I got decently printable miniatures from my first print.

G
Gary Lee Morris
I now own 6 RS Turbos and all are excellent.

I now own 6 RS Turbos. They are excellent machines and suit my small 3d printforge perfectly. I look forward to Heyygears releasing a large format version with anticipation. If they can match these in large format they'll be the only printers we use in our small business. The software, workflow and simplicity mean virtually zero downtime and they've been running 24/7 wiith a 99.99% success rate.

I
Israel Melendez
RS Turbo Reflex with Pulse Module

Recently, purchased the RS Turbo Reflex with the heated vat and pulse module. And I have to say I am not disappointed. The ease of use and quality of the prints are amazing. Additionally, I purchased the curing station to help strengthen the prints. I would recommend this to anyone. Beginner and experienced.

P
Panda Casting
This is my first time buying a resin 3D printer and I was anxious about the complexity and

This is my first time buying a resin 3D printer and I was anxious about the complexity and learning curve. I decided to go with the Reflex RS Turbo given the streamlined workflow, speed, and high contrast amber screen. And it was literally "set it and forget it" for all my 32mm scale miniatures!

b
brpry171
I have both the Heygears RS and the RS Turbo

I have both the Heygears RS and the RS Turbo. Well built printers. Almost everything that I print comes out perfect. I like to spend my time finishing my statues and not spend the time messing with settings. I find that it is a very easy printer to use and the results are excellent. You can't beat the price for this machine that is on sale for $699!

O
Ocloro
Incredible printer

Incredible printer. Beautiful perfect prints every time. The quality is mind blowing.

C
Clarke Wardle
The printer is one of the best printers I have ever used

The printer is one of the best printers I have ever used. Speed is fantastic, The Turbo screen really makes the prints faster and I mean considerably faster

C
Chris
#HeyGearsRSTurboPrinter

#HeyGearsRSTurbo
Printer is amazing had it for about 2 months and so far no failed prints and very high detail. I highly recommend the rs turbo

A
Aldo
After pfaffing around with other printer brands

After pfaffing around with other printer brands and constantly having failures I decided to splurge on this printer. It was the absolute best decision I made in this hobby. Every print is flawless and I’ve literally had no fails since I got it in June 2025. This is the best printer right now hands down. #HeyGearsRSTurbo

FAQs

Please read our FAQs page to find out more.

What makes the Reflex RS Turbo different from other resin 3D printers?

The HeyGears Reflex RS Turbo combines high-speed resin printing with precision components designed for detailed and reliable results. It features an upgraded Amber Screen with a 566:1 contrast ratio, a C5-grade Z-axis module with ±2 μm motion accuracy, and Dynamic Motion Algorithm 3.0 for up to 33% faster printing. Together, these technologies help deliver sharp details, precise edges, and consistent print quality at higher speeds.

What are the benefits of the Reflex RS Turbo's upgraded Amber Screen?

The upgraded Amber Screen provides a high 566:1 contrast ratio for more precise light control during exposure. By reducing unwanted light bleeding and stray UV exposure, it helps produce sharper edges, finer details, and smoother surfaces. The screen also offers improved UV resistance and thermal stability for consistent printing performance over time.

Can the Reflex RS Turbo use third-party resin?

Yes. The Reflex RS Turbo can use compatible third-party UV-curable resins with Open Material Mode. Designed for experienced users, Open Material Mode provides adjustable print settings that allow greater freedom to fine-tune and customize printing parameters for different resins and applications.For optimized printing performance, HeyGears also offers compatible RS Turbo resins, including PAS10, PAF10, PAP10, PARP10, PAWR10, PAB10, and PAWW20. These resins are designed for applications such as miniatures, figurines, prototypes, functional parts, and detailed models.

Is the Reflex RS Turbo a good 3D printer for miniatures?

Yes. The Reflex RS Turbo is designed for high-detail resin printing and is particularly well suited to miniatures. Its high-contrast Amber Screen, precise Z-axis motion, and optimized printing workflow help reproduce fine textures, facial features, sharp edges, and other small details.

What is the Reflex RS Turbo best used for?

The Reflex RS Turbo is designed for high-detail resin printing across a wide range of applications, including miniatures, action figures, figurines, collectibles, tabletop models, jewelry prototypes, molds, engineering prototypes, functional parts, and product housings. Its high-resolution printing capabilities deliver sharp edges, fine textures, small features, and consistent detail on complex geometries, making it especially well suited for models and prototypes that require both precision and reliable results.

Is the Reflex RS Turbo easy to maintain?

The Reflex RS Turbo is designed for a streamlined maintenance routine. Its modular structure, robust Z-axis system, and durable Amber Screen help reduce the need for frequent calibration. Regular cleaning, resin handling, and routine inspection are still recommended to maintain consistent print quality and long-term performance.

Can the Reflex RS Turbo print detailed action figures and collectibles?

Yes. The Reflex RS Turbo is well suited for detailed action figures, character models, collectibles, and display pieces. Its high-resolution resin printing helps reproduce complex shapes, facial features, clothing textures, and other fine details while maintaining consistent print quality across intricate models.

Who should buy the Reflex RS Turbo?

The Reflex RS Turbo is ideal for miniature makers, tabletop gamers, collectors, hobbyists, designers, and creators who want faster resin printing with sharp details and reliable results. It is also a strong upgrade option for users moving beyond entry-level resin 3D printers.

How fast is the Reflex RS Turbo?

The Reflex RS Turbo uses Dynamic Motion Algorithm 3.0 to enable printing speeds up to 33% faster than the previous generation. Its high-speed workflow is designed to maintain precise details and consistent print quality while reducing overall printing time.

Is the Reflex RS Turbo a good home 3D printer?

The Reflex RS Turbo can be used as a high-performance home 3D printer for hobbyists, miniature makers, collectors, and creators who need detailed resin prints. Its streamlined workflow makes it easier to manage resin printing while maintaining professional-level performance.

What materials are compatible with the Reflex RS Turbo?

The Reflex RS Turbo is optimized for HeyGears’ advanced resin lineup, including PAP10 Precise Detail Resin and PAWW10 water-washable resin. It can also work with a variety of UV-curable resins depending on your specific application, whether you're printing miniatures and figurines, engineering parts, or display-ready prototypes.

Is the HeyGears Reflex RS Turbo suitable for beginner-level users?

While the RS Turbo is designed with professional-grade components, it also features a user-friendly interface and streamlined printing process. It is especially well-suited for intermediate users who are upgrading from entry-level machines and want better speed, stability, and detail accuracy without a steep learning curve.

What types of models can the Reflex RS Turbo print?

This printer excels in printing high-detail and application-specific models, such as:It can adapt to complex geometric shapes and can easily produce miniature models and armor parts.Figure statue table chess, movable models, electronic products, and outdoor equipment.Engineering-grade parts for testing or presentation.Detailed models such as jewelry prototypes, molds and figurines.Various end products and industrial uses, such as parts and housings.
